PRODUCTS CENTER
-

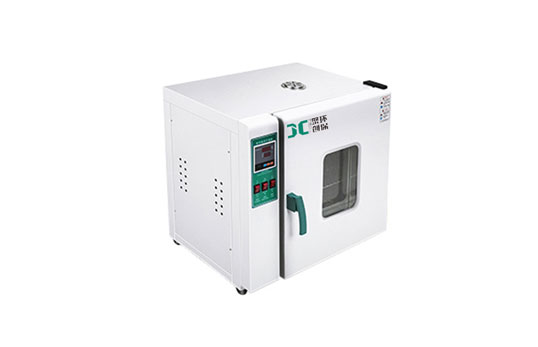

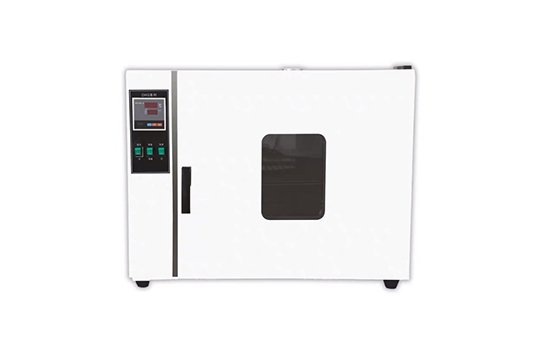

Product name：101 series electric heating blast constant temperature drying oven -
Order number： -
Model：101 series -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
101 series electric heating blast constant temperature drying oven is used as drying of glassware, thermal denaturation and thermal hardening of samples, dry heat sterilization of glassware for removing residual moisture in samples, preheating before heating experiment, food and chemical during heating It is used for material hardening or softening experiments, removing moisture, prolonging the storage time of food under harsh conditions, and drying, baking, sterilizing, sterilizing and material denaturing experiments of building materials, electronic components and heat resistance experiments.
Mainly used for baking, drying, heat treatment and thermal processing of items, agricultural production, scientific research, and experimental practice. , sterilization, drying and disinfection, can also be used for general constant temperature test.
2. Product parameters
product name
model
Studio CM
Dimensions
power
volume
Remark
(long, deep and high)
(long, deep and high)
(IN)
(I)
Electric blast constant temperature drying oven
101-0
25*25*25
51*39*49
500
16
With blast no B is galvanized sheet liner With B is stainless steel liner
101-0B
101-00
35*35*35
61*49*59
800
43
101-00B
101-1
45*35*45
71*49*69
2000
70
101-1B
101-2
55*45*55
81*59*79
3000
136
101-2B
101-3
60*50*75
86*64*89
4500
225
101-3B
technical parameter
1. Temperature control range: 50°C-300°C 2. Timing range: 1-9999 minutes 3. Temperature fluctuation: ±1°C 4. Temperature control accuracy: 1°C 5. Temperature uniformity: 4% (in an empty box temperature deviation in different areas of the box)
3. Product Features
1. The shell adopts electrostatic spraying technology, and the paint film is firm and beautiful.
2. There is an observation window on the door, which can observe the heating of the items in the work room at any time.
3. Microcomputer intelligent PID control, dual-screen high-brightness digital display, clear and beautiful indication, accurate and stable temperature control. With timing (0-9999min).
4. The hot air circulation system is composed of a fan and a seal that can continuously operate at high temperature, and the temperature in the working room is uniform.
5. The inner tank is made of galvanized sheet or stainless steel sheet, and the semi-circular arc four corners are designed to be more convenient to use and clean.
6. The door of the box is well sealed with silicone strips.
