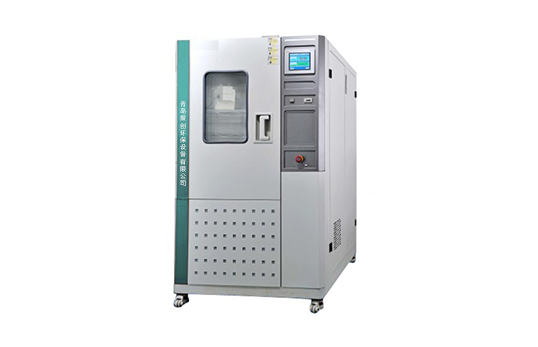

Product name：JC-GDR-120C/210C/500C/1000C high and low temperature alternating humidity and heat test box type C -
Order number： -
Model：JC-GDR-120C/210C/500C/1000C -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
It is suitable for high and low temperature and storage tests of electrical, electronic products, instruments, materials and components, and is widely used in aviation, aerospace, telecommunications, instrumentation, materials, electrical, electronic products, various electronic components, etc. Accelerated damp heat test, alternating damp heat test and constant damp heat test for industries, electrical products, materials, parts, equipment, etc., in order to evaluate the performance of the test sample under given environmental conditions. Check its performance indicators.
Implement and meet the standards and test methods:
GB/T10589-2008 Technical Conditions for Low Temperature Test Chamber
GB/T11158-2008 Technical Conditions for
High Temperature Test Chamber GB/T0592-2008 Technical Conditions for High and Low Temperature Test Chamber (degree alternating)
GB/T2423.1- 2008 test A: low temperature
GB/T2423.2-2008 test B: high temperature GB/T2423.34-205
test
GJB150.3A-2009 Part 3: High Temperature Test
GJB150.4A-2009 Part 4: Low Temperature Test
GJB150.9A-2009 Part 9: Humidity Test
2. Product parameters
model
JC-GDR-120C
JC-GDR-210C
JC-GDR-500C
JC-GDR-1000C
Studio size
400*500*600
500*600*700
700*800*900
1000*1000*1000
Dimensions
1120*1070*1560
1140*1150*1660
1360*1380*1860
1660*1500*1980
Humidity range
20-98%RH
Humidity deviation
±2%RH-3%RH
temperature range
-70℃～150℃
temperature fluctuation
≤±0.5℃
temperature deviation
≤±1℃
display resolution
Temperature 0.1℃ Humidity 0.11%RH
Temperature Sensor
Class A PT100 platinum resistance temperature sensor
operating mode
Constant operation + program operation
timed operation
The running time can be set as needed, 0.1-999.9 (HMS) adjustable
Heating time
25℃(normal temperature)～-40℃≤60min 25℃(normal temperature)～-70℃≤80min
cooling time
25℃ (normal temperature)～150℃≤60min
refrigeration unit
Hermetic compressor
Refrigerant
R404A/R23
cooling method
air cooling
humidification system
External isolation type, all stainless steel surface evaporator
Dehumidification system
Laminar flow contact dehumidification method with evaporator coil dew point temperature
water supply method
The humidification water supply adopts an automatic method, and the residual water can be recovered, saving water and reducing consumption
heater
Nickel-chromium alloy electric heater
Box outer wall material
Baosteel's cold-rolled steel sheet (1.5mm thick), surface electrostatically sprayed
Box inner wall material
Anti-corrosion SUS304 mirror stainless steel plate (1.2mm thick)
Safety protection device
Leakage, short circuit, water shortage, overtemperature, compressor overpressure, overload, motor overheating and overcurrent protection
Observation window
Electric heating film hollow heat-proof observation window
Insulation Materials
Ultrafine thermal insulation glass wool
Standard Parts
1 test hole with diameter of 25, 50 or 100mm, 2 sets of sample holders, anti-fog lighting device, 4 casters
power supply
380V (±10%), 50HZ three-phase four-wire + independent protective ground wire
Use environment
5℃～+30℃ ≤80%RH
Options
RS232 or RS485 computer interface and software
3. Product features
1. The appearance design is simple and beautiful, the installation position of each component is reasonable, and the electrostatic spraying color meets the overall configuration requirements of the customer's laboratory.
2. It has a wide temperature control range and high control accuracy.
3. Balanced temperature and humidity adjustment It can carry out high-precision and stable temperature and humidity control.
4. With timing operation function.
5. Scheduled start function.
6. With independent over-temperature protection system.
7. Using Korean original high-precision programmable temperature and humidity controller, 5.7 inches True color touch screen operation, Chinese/English display.
8. Adopt imported refrigeration compressor unit, cold end output control, save energy consumption and reduce customer use costs.
