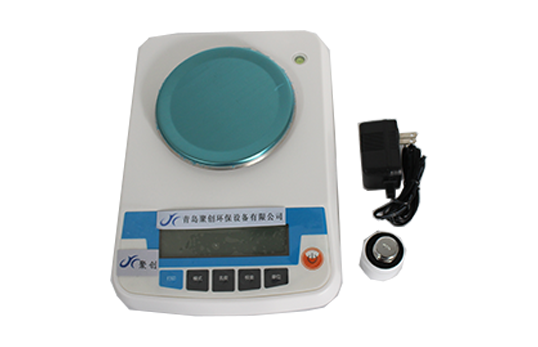

Product name：YP1002-20002 series general electronic precision balance -
Order number： -
Model：YP1002-20002 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
YP1002-20002 series of ordinary electronic precision balances have many different models, "Italian design" implies innovation and technology. * The new generation of data microprocessor makes the balance show amazing stability in any harsh environment. Qingdao Juchuang Environmental Protection ensures that every production link that strives for perfection is flawless.
It connects the weighing plate with the energized coil and places it in the magnetic field. When the object to be weighed is placed on the weighing plate, due to the downward gravity, an electromagnetic force will be generated on the coil, which is equal in magnitude and opposite to the direction of gravity. At this time, the sensor outputs an electrical signal, which is rectified and amplified to change the current on the coil until the coil returns, and its current intensity is proportional to the gravity of the object being weighed. And this gravity is produced by the mass of the material, and the resulting electrical signal will display the mass of the item being weighed after passing through the analog system.
2. Product parameters
model
Invoice number
Weighing range
readability accuracy
Dimensions
power supply
Weighing pan size
YP1002
D032618
0~100g
10mg
320×280×150mm
AC and DC
Φ130mm
YP2002
D032619
0~200g
10mg
320×280×150mm
AC and DC
Φ130mm
YP3002
D032620
0~300g
10mg
320×280×150mm
AC and DC
Φ130mm
YP4002
D032621
0~400g
10mg
320×280×150mm
AC and DC
Φ130mm
YP5002
D032622
0~500g
10mg
320×280×150mm
AC and DC
Φ130mm
YP6002
D032623
0~600g
10mg
320×280×150mm
AC and DC
Φ130mm
YP10002
D032624
0~1000g
10mg
320×280×150mm
AC and DC
Φ130mm
YP20002
D032625
0~2000g
10mg
320×280×150mm
AC and DC
Φ130mm
YP30002
D032626
0~3000g
10mg
320×280×150mm
AC and DC
Φ130mm
YP2001
D032627
0~200g
100mg
320×280×150mm
AC and DC
Φ130mm
YP4001
D032628
0~400g
100mg
320×280×150mm
AC and DC
Φ130mm
YP6001
D032629
0~600g
100mg
320×280×150mm
AC and DC
Φ130mm
YP8001
D032630
0~800g
100mg
320×280×150mm
AC and DC
Φ130mm
YP10001
D032631
0~1000g
100mg
320×280×150mm
AC and DC
Φ130mm
YP20001
D032632
0~2000g
100mg
320×280×150mm
AC and DC
Φ130mm
YP30001
D032633
0~3000g
100mg
320×280×150mm
AC and DC
165×165mm
YP40001
D032634
0~4000g
100mg
320×280×150mm
AC and DC
165×165mm
YP50001
D032635
0~5000g
100mg
320×280×150mm
AC and DC
165×165mm
YP1000
D032636
0~1000g
1g
320×280×150mm
AC and DC
255×190mm
YP2000
D032637
0~2000g
1g
320×280×150mm
AC and DC
Φ130mm
YP3000
D032638
0~3000g
1g
320×280×150mm
AC and DC
Φ130mm
3. Product Features
1. The smooth and novel shape design reflects the pursuit of modern concepts.
2. The new design makes the weighing response faster and the fixed point faster .
3. The metal base and mechanical structure ensure the stability of the balance, increase the anti-interference of the balance, and SmartTrac dynamic graphic display, which directly displays the used weighing range of the balance.
4. It has a variety of measurement unit conversion , counting function and animal weighing function.
5. Device RS232C output interface .
