1. Product introduction

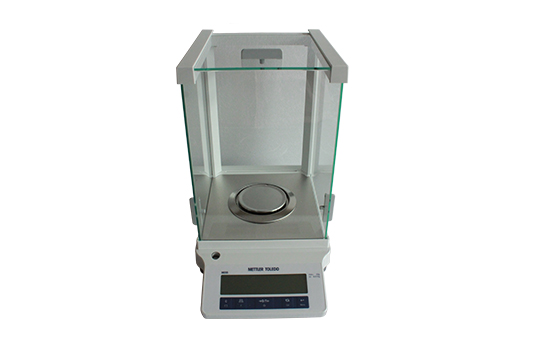

ME55 1/100,000th Microelectronic Analytical Balance (Imported) is a NewClassic ME semi-micro balance with Swiss quality. The design is sturdy, simple and reliable, and the performance of efficient operation gives the balance extraordinary value. Ideal. Ergonomic design, front level adjustment system, make the balance always keep level under your viewing angle when in use, make your daily weighing easy and efficient, humanized design makes your various weighing Application functions are at your fingertips, intuitive keys and a bright, backlit LCD display make operating the balance extremely easy. NewClassic ME semi-micro balances provide accurate and reliable assurance for your weighing work day in and day out. It connects the weighing plate with the energized coil and places it in the magnetic field. When the object to be weighed is placed on the weighing plate, due to the downward gravity, an electromagnetic force will be generated on the coil, which is equal in magnitude and opposite to the direction of gravity. At this time, the sensor outputs an electrical signal, which is rectified and amplified to change the current on the coil until the coil returns, and its current intensity is proportional to the gravity of the object being weighed. And this gravity is produced by the mass of the material, and the resulting electrical signal will display the mass of the item being weighed after passing through the analog system.

2. Product parameters

3. Product Features

1. Using new electronic circuits, equipped with high-speed CPU and special chips, it can quickly obtain accurate weighing results.

2. Multi-level digital filtering and compensation technology to optimize the weighing performance of the balance under different weighing conditions.

3. Dynamic temperature compensation , real-time correction of the impact of ambient temperature fluctuations on the measurement results.

4. Green and environmentally friendly design, using environmentally friendly and safe materials, the power consumption is reduced by 50%, and the standby power consumption is 1W.

5. The standard five-sided glass windshield and anti-static base plate design can effectively avoid the influence of static electricity on the weighing results.

6. The clear and bright digital backlit display makes it easy to read in all working environments.

7. Front level adjustment feet and level indicator are convenient to observe and adjust the level, and ensure the level state at all times.

8. The large tare key is designed to facilitate the user's weighing operation.

9. SmartTrac dynamic graphic display directly displays the weighing range used by the balance.

10, 1/10d readability reduction function, quickly obtain stable weighing results.

11. Key-triggered automatic internal or external weight calibration to ensure accurate weighing results are always obtained.

12. The balance frame is equipped with a plastic protective cover as standard to avoid corrosion of scattered samples and damage to the balance surface.

13. Customer fine-tuning function (ADJ.CF), which enables you to adjust the built-in calibration weight value with your own calibration weight.

14. Hereinafter referred to as the hook design , to meet the special application requirements of customers.

15. The SmartKey function key can directly enter the weighing application list, which is convenient for users to call the application.

16. Rich built-in applications: formula weighing, summing weighing, dynamic weighing, piece counting, density determination, percent weighing, check weighing, statistical weighing, free factor weighing.

17. The weighing value retrieval function automatically stores the last weighing result for easy viewing.

18. The PC-Direct function can directly transfer the weighing results to open applications such as Excel, and the transfer process starts automatically without other auxiliary software.

19. Built-in RS232 communication interface, which is convenient to connect peripheral devices such as printers and computers .
