1. Product introduction

FA1004C-2004CS series 1/10,000 electronic analytical balance (internal calibration) is developed by using electromagnetic balance sensor technology. It has the characteristics of high precision and strong environmental adaptability, as well as linear four-point calibration and counting functions. And a variety of unit conversion functions. The traditional classification element circuit board is changed to a large digital integrated type, which makes the performance of this series of electronic balances more stable, and the response speed is faster. At the same time, it has the functions of adjustable integration, stability and sensitivity.

It connects the weighing plate with the energized coil and places it in the magnetic field. When the object to be weighed is placed on the weighing plate, due to the downward gravity, an electromagnetic force will be generated on the coil, which is equal in magnitude and opposite to the direction of gravity. At this time, the sensor outputs an electrical signal, which is rectified and amplified to change the current on the coil until the coil returns, and its current intensity is proportional to the gravity of the object being weighed. And this gravity is produced by the mass of the material, and the resulting electrical signal will display the mass of the item being weighed after passing through the analog system.

2. Product parameters

3. Product Features

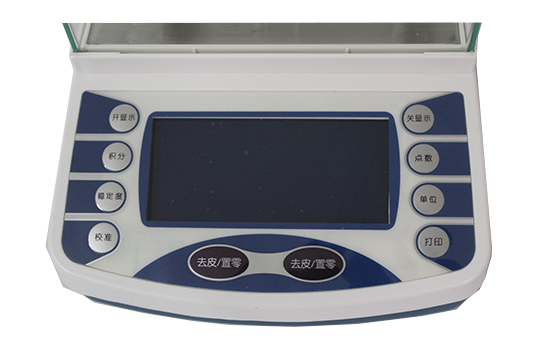

1. Large LCD screen makes the operator's vision softer and clearer.

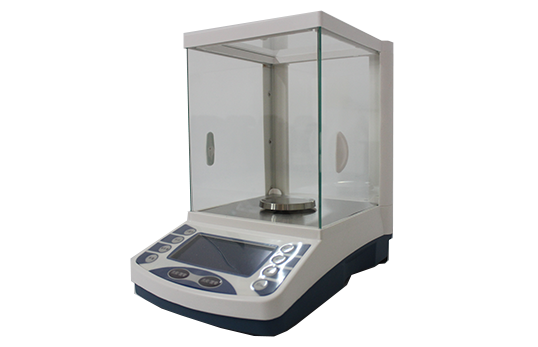

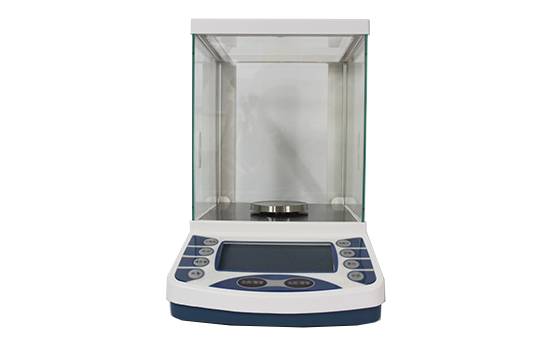

2. Humanized design, novel structure , five-sided transparent glass windshield.

3. The new generation of electromagnetic balance weighing sensor is adopted to ensure the high precision of the product.

4. With automatic fault detection, linear four-point calibration , overload protection and other applications.

5. The large digital integrated circuit board used is the guarantee of product accuracy.
