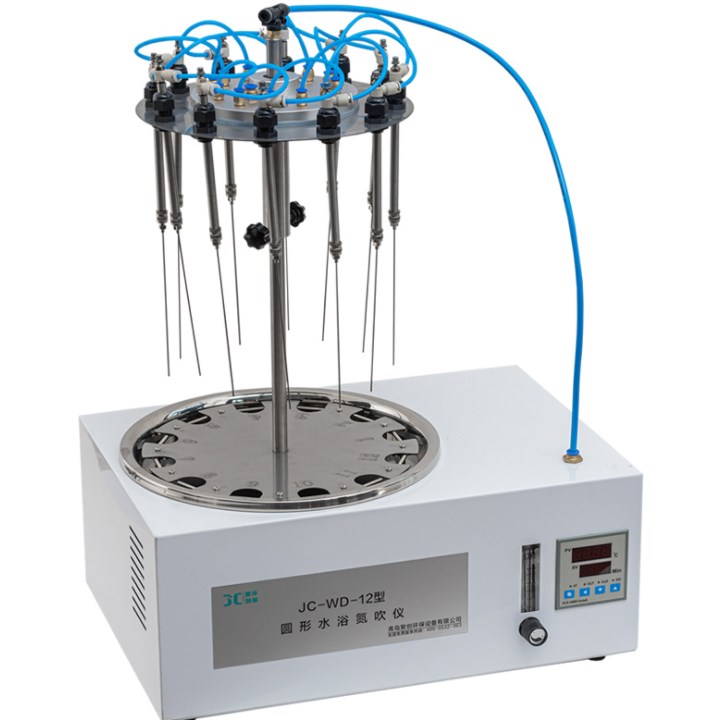

  • Product name:Water bath nitrogen blower
  • Order number:
  • Model:JC-WD12/24
  • Stock status:Available
  • Logistics:By sea, air, express, etc.
  • Product Introduction
  • Product parameters
  • 1. Product introduction

     Generally, it is used for the pretreatment of gas phase and liquid phase experiments, instead of the commonly used rotary evaporator for concentration, it can concentrate dozens of samples at the same time, which greatly shortens the sample preparation time.



    2. Product Features



    1. Provide a variety of models: 12-bit (standard), 24-bit (standard), 45-bit (customized).



    2. The shape is compact and takes up the least space.



    3. The lifting and lowering of the sample holder is controlled electrically.

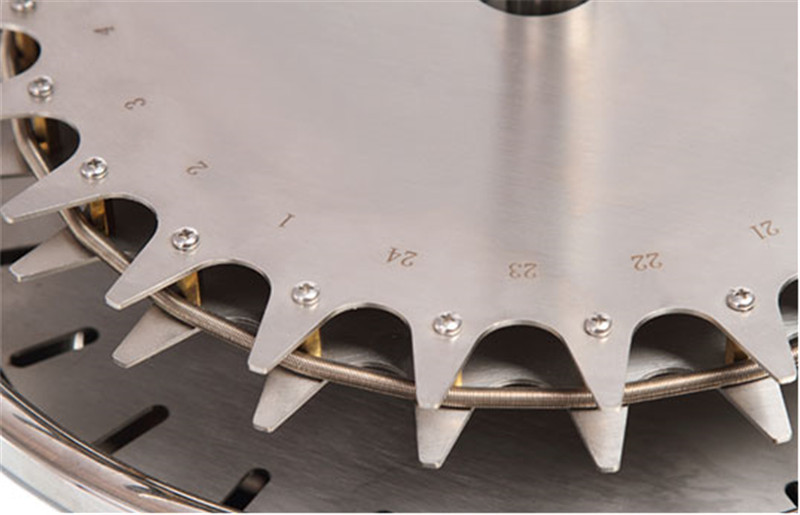

    4. The circular sample holder can be rotated, and the operator can take the sample from

    the front, which is convenient for operation.



    5. The size of the test tube that can accommodate the sample is 10-29mm in diameter, and the volume of the liquid inside is 1-50ml.



    6. It is suitable for test tubes, conical flasks, centrifuge tubes, etc. Each sample position has a number number.

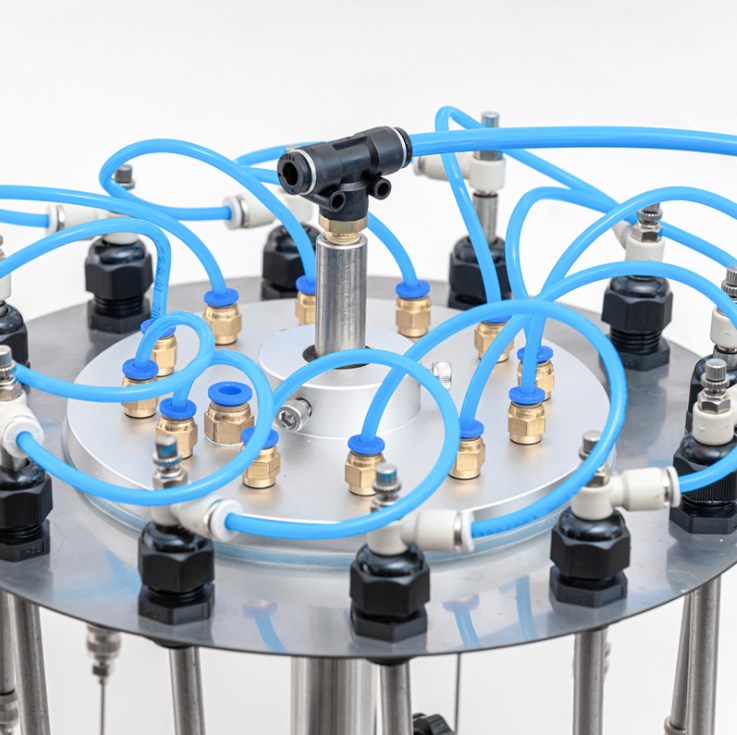

    7. The free lifting needle valve tube has a needle valve at each position, which can adjust the gas flow at each position separately.



    8. Purge the sample surface with nitrogen or air.



    9. Low nitrogen consumption, 330ml/min/sample.



    10. Gas flow meter with needle valve, which can control and observe gas consumption.



    11. Circular constant temperature water bath provides gentle heating, liquid crystal display.



    12. Super-long timing function (0~99h59m/normally open), countdown display, buzzer prompting time is up.



    13. All parts are resistant to organic solvents.



    14. It adopts colorless, odorless and transparent imported silicone tube and stainless steel material.



    15. When concentrating toxic solvents, the entire system can be placed in a fume hood.



  • 1. Number of samples: 12 (standard), 24 (standard), 45 (customized);



    2. Heating method: constant temperature water bath;



    3. Temperature range: room temperature +5~99℃ (liquid crystal display);



    4. Temperature adjustment accuracy: ±0.1℃;



    5. Temperature control accuracy: ±0.3℃;



    6. Timing range: 099h59m/normally open, countdown display;



    7. The use of test tube range: 10 ~ 29mm;



    8. Gas flow: 010L/Min;



    9. Gas input range: 30150 psig;



    10. Gas output range: 030 psig;



    11. Gas consumption: 330ml/min/sample (adjustable);



    12. Maximum power: 400W;



    13. Material: stainless steel liner;



    14. Inner size (inner diameter × depth): φ260x140mm;



    15. Instrument size (L×W×H): 325x300x980mm;



    16. Weight: 9.6Kg.
