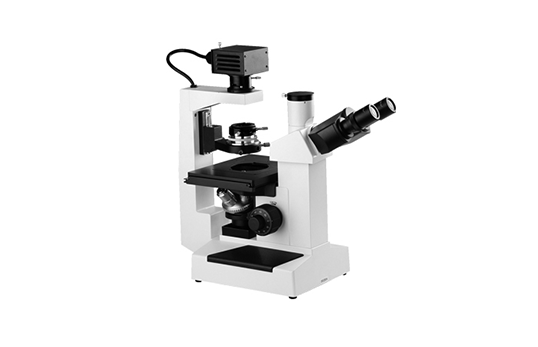

Product name：JC-XSP-1 Inverted Biological Microscope -
Order number： -
Model：JC-XSP-1 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
JC-XSP-1 inverted biological microscope is equipped with long working distance plan achromatic objective lens, large field eyepiece and adjustable condenser. The product has a compact structure and a reasonable operating part design, which makes the observer feel relaxed and comfortable during the operation of the instrument. The product is suitable for microscopic observation of cell tissue, transparent liquid tissue, and dynamic microscopic observation of cultured tissue in culture dishes. It can be used in scientific research institutes, colleges and universities, agriculture, animal husbandry and dairy industries.
2. Product parameters
Technical Specifications
eyepiece
Large field of view WF10X (field of view Φ20mm)
centering telescope
Long Working Distance Plan Achromatic Objectives
objective lens
PLL 10X0.25 working distance: 8.8 mm, cover glass thickness: 1.2 mm.
PLL 25X0.40 Working distance: 4.8 mm, Cover glass thickness: 1.2 mm.
PLL 40X0.60 Working distance: 3.3 mm, Cover glass thickness: 1.2 mm.
Phase contrast objective
PLL 10X0.25 PHP Working distance: 8.8 mm, Cover glass thickness: 1.2mm.
eyepiece tube
Trinocular, 30˚ tilt
Focusing mechanism
Coarse and micro-movement coaxial focusing, with locking and limit device, micro-movement grid value: 2μm.
converter
Four holes (inward ball positioning)
Stage
Double-layer mechanical moving stage, moving range: vertical 30mm, horizontal 75mm.
Petri dish holder one
Inner groove size: Ф68mm
Petri dish holder two
Inner tank size: 34mm (width) X77.5mm (length), suitable for round petri dish Ф68.5mm
Concentrator system
The working distance of the plug-in phase contrast condenser is 30mm.
Lighting system
6V20W halogen lamp, adjustable brightness
color filter
Frosted glass, blue and green color filters
Optional accessories
eyepiece
16X (Φ11mm), 20X (Φ11mm)
Phase contrast objective
25X, 40X
Long working distance phase contrast condenser
Working distance: 50mm (Note: Phase contrast objective lenses are: PLL10X/0.25 PHP2, PLL25X/0.40 PHP2, PLL40X/0.60 PHP2)
CCD connectorCCD
0.5X, 1X, 0.5X with reticle
camera
USB output: 300/500/10 million pixels
3. Product Features
observation system
Hinged viewing tube : binocular viewing tube, single vision adjustable,
The lens barrel is inclined at 30 degrees, which is comfortable and beautiful. Miki observation tube,
Can be connected to photography, video equipment.
Eyepiece: WF10X large field plan eyepiece,
The market range is ф 20mm, providing a wide and flat observation space .
Mobile mechanical stage
Double-layer mechanical moving stage,
Movement range: vertical 30mm, horizontal 75mm.
Equipped with three different specifications of petri dish trays,
Suitable for observation needs of different petri dishes
