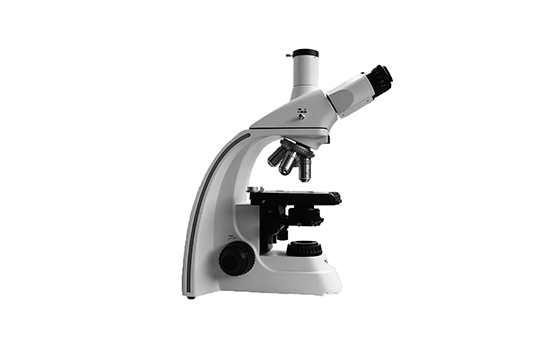

Product name：JC-XSP-A Research Grade Trinocular Biological Microscope -
Order number： -
Model：JC-XSP-A -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
JC-XSP-A research-grade trinocular biological microscope is equipped with infinity plan achromatic objective lens and large-field eyepiece. It has the characteristics of beautiful appearance, clear imaging, wide field of view, and convenient operation. It can be widely used in industry and agriculture. It is an ideal instrument for medical, teaching, scientific research and other fields.
2. Product parameters
Technical Specifications
eyepiece
Large field of view WF10X (field of view Φ22mm)
Infinity Plan Achromatic Objectives
PL 4X/0.10 working distance: 19.8 mm
PL 10X/0.25 working distance: 5.0mm
PL 40X/0.65 (spring) working distance: 0.66 mm
PL 100X/1.25 (spring, oil Spring, oil) working distance: 0.36mm
eyepiece tube
TL2800B HBG
Binocular (tilted 30˚), eye point height adjustable
TL2800A HBT
Trinocular (tilted 30˚), eye point height adjustable
Focusing mechanism
Coarse and micro-movement coaxial focusing, with locking and limit device, micro-movement grid value: 2μm.
converter
Four holes (inward ball positioning)
Stage
Double-layer mechanical mobile: 193mmX155mm, moving range: 75mmX50mm
Abbe condenser
NA1.25 can be lifted up and down
color filter
blue filter, frosted glass
concentrator
A field diaphragm is built into the collector.
light source
High-power high-brightness white LED, adjustable brightness
Instrument options:
eyepiece
Reticle eyepiece 10X (field of view Φ22mm) grid value 0.10mm/grid
objective lens
Infinity Plan Achromatic Objectives
PL 20X/0.40 working distance: 8.8 mm
PL 60X/0.85 working distance: 0.25mm
Phase contrast device
eyepiece
centering telescope
objective lens
Infinity Phase Contrast Plan Achromatic 10X/0.25 PHP
Infinity Phase Contrast Plan Achromatic 20X/0.40 PHP
Infinity Phase Contrast Plan Achromatic 40X/0.65 PHP (Spring)
Infinity Phase Contrast Plan Achromatic 100X/1.25 PHP (Spring, Oil)
pull plate phase contrast
Simple Polarization System
polarizer
Can be rotated 360° 360°
Analyzer
push-pull
Lighting system
6V 30W halogen lamp
3. Product Features
Using an excellent optical system, it can provide excellent optical performance. The streamlined design concept, paired with pastel colors, makes the microscope more aesthetically pleasing. The ideal design in line with ergonomic requirements makes the operation more convenient and comfortable, and the space is wider.
Trinocular observation system:
The trinocular observation tube can freely switch the visual angle
Observation and photomicrography, 30 degree tilt,
The height of the eye point is adjustable, and it does not take a long time to operate
Looking down or looking up makes the operator's
Neck and shoulders are effectively released
, suitable for different eye point heights
The operator can take 100% light when taking pictures.
Stage:
Double-layer mechanical stage,
Size 193mm*155mm,
Movement range: 75mm*50mm.
Coaxial gear and flexible steel wire transmission combination.
Makes stage movement smoother. Built-in transmission mechanism,
It can effectively prevent the operator from being injured due to the exposure of the transmission mechanism.
Humanized design,
There is a portable handle on the back of the microscope, which makes it more convenient to move the microscope.
Polarizer:
You can choose to configure the polarizer,
The polarizer and the analyzer are rotated by rotating the polarizer turntable,
Make the polarizer and the analyzer orthogonal,
achieve polarizing effect
