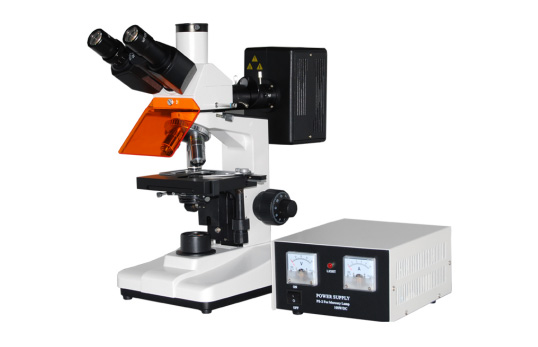

Product name：JC-ZZ-02 Epi-fluorescence microscope -
Order number： -
Model：JC-ZZ-02 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
JC-ZZ-02 epi-fluorescence microscope is suitable for fluorescence microscopy and transmission field observation , and can be used by scientific research, universities, and other departments.
2. Product parameters
model
JC-ZZ-02
eyepiece
Large field of view WF10X(Φ18mm)
objective lens
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 100X/1.25 ( spring , oil )
Fluorescence objective 20X/0.65
eyepiece tube
Trinocular ( tilted 30˚)
Focusing mechanism
Coarse and micro-movement coaxial focusing, with locking and limit device , micro-movement grid value : 2μm.
converter
Four holes ( inward ball positioning )
Stage
Double-layer mechanical mobile mobile type ( size : 135mmX125mm, moving range : 75mmX35mm)
Abbe condenser
NA1.25 can be lifted up and down
color filter
blue filter
frosted glass
concentrator
Suitable for halogen lamps
light source
6V 20W halogen lamp , brightness adjustable
Epi-fluorescence device
Mercury lamp light box 100W/DC
Power box: AC : 110V or 220V
Fluorescence filter set B Excitation light band : 420~485nm
Fluorescence filter set G Excitation light band : 460~550nm
3. Product Features
1. Equipped with large-field eyepieces and flat-field achromatic and fluorescent objective lenses, the field of view is large and clear.
2. Coaxial focusing mechanism with coarse and fine movements, adjustable for coarse movements, with locking and limit devices, fine-moving grid values: 2μm.
3. 6V 20W halogen lamp is used for transmission illumination, with adjustable brightness; 100W high pressure mercury lamp is used for fluorescent epi-illumination, and an external power supply box is used.
