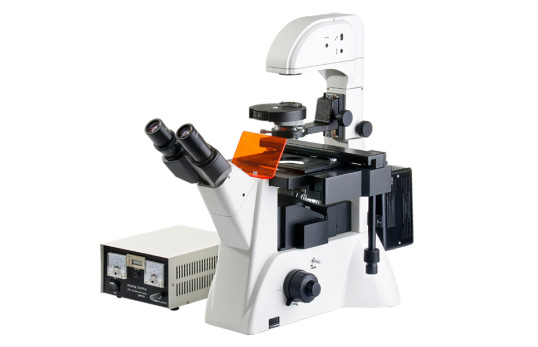

Product name：JC-DZ-04 Inverted Fluorescence Microscope -
Order number： -
Model：JC-DZ-04 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
JC-DZ-04 inverted fluorescence microscope is composed of epi-fluorescence microscope system and inverted biological microscope system. It adopts excellent infinity optical system, and is equipped with long working distance plan objective lens and large field eyepiece. The compact and stable high-rigidity body fully reflects the anti-vibration requirements of micromanipulation. The rotating pendulum-in-swing-out concentrating system can observe non-contaminated cultured cells in tall petri dishes or cylindrical flasks. The epi-fluorescence microscope system adopts a modular design concept, which can safely and quickly adjust the illumination system and switch the fluorescence filter assembly. The product can be applied to the microscopic observation of cell tissue, transparent liquid tissue,
2. Product parameters
Technical Specifications
eyepiece
Large field of view WF10X ( field of view Φ22mm)
centering telescope
Infinity Plan Achromatic Objectives
objective lens
PLL 10X0.25 working distance: 4.3 mm , cover glass thickness: 1.2mm.
PLL 20X0.40 working distance: 8.0 mm , cover glass thickness: 1.2mm.
PLL 40X0.60 working distance: 3.5 mm , cover glass thickness: 1.2mm.
Phase contrast objective
PLL 10X0.25 PHP2 working distance: 4.3 mm , cover glass thickness: 1.2mm.
PLL 20X0.40 PHP2 working distance: 8.0 mm , cover glass thickness: 1.2mm.
PLL 40X0.60 PHP2 working distance: 3.5 mm , cover glass thickness: 1.2mm.
eyepiece tube
The tilt is 45˚, and the interpupillary distance adjustment range is 53~75mm.
Epi-Fluorescence Illumination System
Power box 110V/230V optional
Mercury lamp 100W/DC
Fluorescence filter set
group
Types of
Excitation wavelength
Transmitter wavelength
UV + violet
UV
330nm~400nm
425nm
purple
395nm~415nm
455nm
blue + green
Blue
420nm~485nm
515nm
green
460nm~550nm
590nm
Focusing mechanism
Coarse and fretting coaxial , with locking and limiting device , fretting grid value : 2μm.
converter
Five hole converter
Stage
Fixed stage size: 227mmX208mm.
Glass round stage plate size: Ф118mm.
Mechanical movement size, movement range: vertical 77mm , horizontal 114mm ,
Petri dish holder one
Inner tank size: 86mm (width) X129.5mm (length), suitable for round petri dishФ87.5mm
Petri dish holder two
Inner tank size: 34mm (width) X77.5mm (length), suitable for round petri dishФ68.5mm
Petri dish holder three
Inner groove size: 57mm (width) X82mm (length)
Transillumination system
Turntable Phase Contrast Condenser, Working Distance 55mm
6V30W halogen lamp, brightness adjustable
Frosted glass, blue and green color filters
Optional accessories
eyepiece
10X reticle wide-angle eyepiece (Φ22mm), grid value 0.1mm/ grid
objective lens
Infinity Plan Achromatic PL 5X/0.12 W.D26.1
converter
Six holes ( inward ball positioning )
CCD connector
0.4X
0.5X
1X
0.5X with reticle , grid value 0.1mm/ grid
camera
3MP/ 5MP /10MP CMOS camera
1.4 million 5 million professional CCD cold camera
digital camera connector
CANON(EF), NIKON(F)
