1. Product introduction

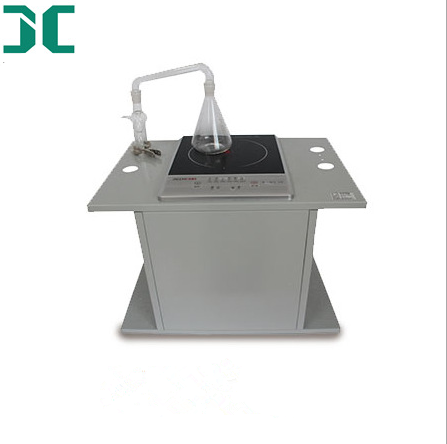

JC-ZL-100 multifunctional distiller adopts the latest infrared heating method, which has the advantages of high thermal efficiency, long life, fast heating and cooling speed, adjustable heating time and heating power, etc.

The whole system is simple, easy to install and maintain, and reliable to use. It can be widely used in the pretreatment process of sample analysis that needs to be distilled in industries such as environmental protection, chemical industry, and materials.

It is especially suitable for the distillation of samples before the measurement of ammonia nitrogen, volatile phenol, cyanide, etc.

The basic principle is to adjust the pH value of the water sample to 6.0-7.4, add light magnesium oxide to make it slightly alkaline, and absorb the ammonia released by distillation with boric acid solution.

Using methyl red-methylene blue as indicator, titrate ammonia nitrogen (in N) in the distillate with standard hydrochloric acid solution.

2. Product parameters

1. Four samples can be distilled at the same time.

2. The heating power is adjustable, which can be adjusted at intervals of 100 watts, and the maximum heating power is 1800 watts.

3. The heating time is adjustable, the maximum timing time is 2 hours, and the minimum timing time is 5 minutes.

4. Built-in water cooling circulation device, cooling 4 condenser tubes at the same time.

3. Product Features

1. A large number of samples are processed at the same time.

2. Time and power are adjustable.

3. The cooling effect is good, and there is a water cooling circulation device.
