Product name：PAS-II Autosampler -
Order number： -
Model： -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction

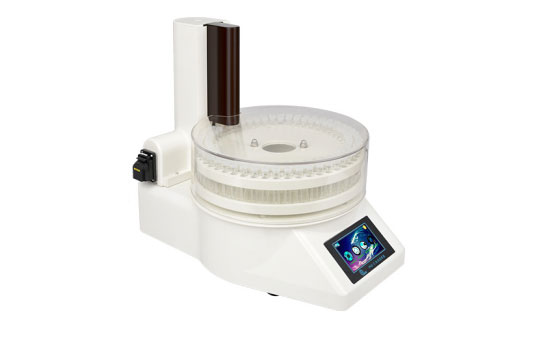

PAS-II automatic sampler is a new type of laboratory automatic control, independent work, unattended automatic instrument. Users can choose different types of ion chromatography according to different needs; and it is easy to operate, using LCD touch screen human-computer interaction control, it can be connected to the computer through the RS485 serial communication interface, or can be directly connected to the chromatograph for control and use ;PAS-II automatic sampler adopts electric injection valve full-pipe injection method, which has high precision and repeatability.
2. Product parameters
category
Specification
Product number
PAS-II
reproducibility
0.01%RSD (injection volume 5uL~1000uL)
Number of samples
100 digits
Position control accuracy
sports
<0.4mm
Three axes (disc rotation, up and down movement of the needle holder, and retractable movement of the needle holder back and forth)
Vial volume
≥6ml
Injection loop volume
0.1uL-1000uL (full tube injection method)
Cross-contamination
CV<0.001%
Syringe cleaning method
Inner diameter and outer wall cleaning
way to control
LCD liquid crystal touch screen human-computer interaction control mode, using RS485 serial interface
input power
220vc/50Hz
Dimensions
500X336X430 (mm) length X width X height
Injection valve
Imported high pressure electromagnetic six-way valve
Other parameters
Location detection, positioning detection
