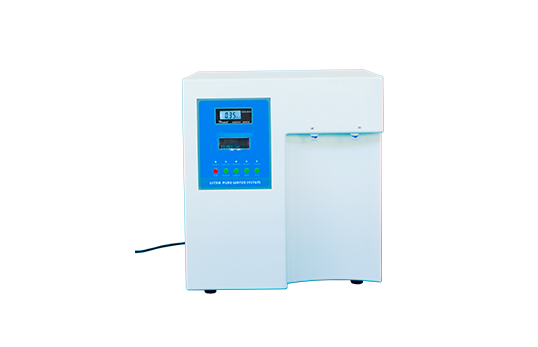

Product name： Analytical Laboratory Water Purifier -
Order number： -
Model：JC-FST-III-10/20 -
Stock status：Available -
Logistics：By sea, air, express, etc.
- Product Introduction
- Features
-
Product introduction
The laboratory-specific water purifier uses pretreatment, reverse osmosis technology, ultra-purification treatment and post-treatment methods to remove the conductive medium in the water, and remove the non-dissociated colloidal substances, gases and organic matter in the water to a very low level. Water treatment equipment to a high degree.
It is widely used in hospitals, university scientific research, quality inspection units, chemical plants, pharmaceutical plants, water quality monitoring centers, livestock industry, water plants, disease control centers, seed monitoring stations, battery plants, LCD screen plants, Circuit factory, dust-free production, etc.
Influent water source
Urban tap water Water temperature 5—40℃ Water pressure 1—5㎏ TDS﹤200ppm
One machine for two purposes
Two types of water can be prepared at the same time, namely RO water and ultra-purified water
Effluent quality
2 water intakes
RO water conductivity≤1μS/cm@25℃;
The water quality standard is better than the national laboratory water (GB6682-92) three-level water standard; better than the general distilled water
220V/50HZ
Instant water intake
RO水2L/min ultra-purified water 1.8L/min
power supply
Equipped with 3.2G vacuum pressure storage bucket
water production
10L/H、20L/H
Tank Configuration
430mm×410mm×460mm
Power
50W
Weight
50㎏
Host volume
Suitable for standard experiments, HPLC, AAS, TOC, PCR, ICP, amino acid analysis, etc.
-
1. The system adopts dual-screen automatic control, touch button touch control system
2. Chinese display, humanized operation display system
3. System power-on self-test function
4. One machine with dual functions, which can prepare pure water and ultrapure water
5. The system has regular automatic flushing function, built-in RO membrane anti-scaling timing automatic flushing function, and built-in RO system regular sterilization function
6. The system has the function of online monitoring and display of ultrapure water, with temperature compensation function, and the function of TDS online liquid crystal display of raw water and pure water in the system.
7. Pure water standby LCD indication function, system water production LCD indication function, system water shortage indication function, system monitoring indication function
8. System water shortage alarm function, system high and low pressure alarm function,
9. Automatically make water when the bucket is short of water, and automatically stop when it is full of water
10. System water leakage protection function
11. The system has the protection function of water outage, power outage and shutdown,
12. Online monitoring and display of ultrapure water quality, with temperature compensation
13. Using ABS casing, beautiful appearance, corrosion resistance, safety insulation performance meets GLP safety requirements
14. The system has upgrade functions such as water quality and water quantity
15. Adopting modular and quick-connect design, maintenance and maintenance are more convenient and fast
