1. Product introduction

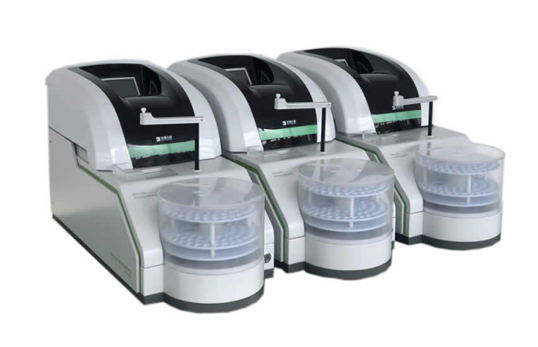

BDFIA-8600 automatic flow injection analyzer is an instrument based on flow injection technology combined with online sample pretreatment module and UV-Vis spectrophotometry. The instrument can be used for volatile phenols, (total cyanide), anionic surfactants, total phosphorus, total nitrogen, sulfide, ammonia nitrogen, nitrate/nitrite, hexavalent chromium, urea, high The analysis of parameters such as manganate index can be used for environmental protection, geology, commodity inspection, water conservancy, tap water and other users.

2. Product parameters

No host configuration required

No shared devices between analytical instruments

Built-in automatic sampling device

Autosampler is 60, can use 15ml centrifuge tube

(58 10ml sample positions, 2 50ml sample positions, 2 current-carrying positions)

Built-in fully automatic online dilution device

Different channels can simultaneously complete online dilution at the same time, no shared equipment

The addition of the online dilution device does not affect the sample analysis time

Other parameters are the same as BDFIA-8000

3. Product Features

1. All-in-one machine design (), each channel includes its own unique automatic sampling device (72 bits) and an independent terminal, one channel is equivalent to an independent instrument, which can realize simultaneous analysis and analysis of multiple channels. Simultaneous analysis of multiple locations of the instrument.

2. Configure the sample dilution valve, which can automatically configure the standard curve, and the dilution ratio is 1-20 times. Double mother solutions can achieve 1-400-fold dilution. Real-time online dilution does not increase the sample testing time, the instrument does not need to wait for downtime, and can automatically dilute samples that exceed the standard.

3. The instrument is equipped with a variety of communication modules, such as WiFi, WLAN, Bluetooth, etc., which can be configured for use with tablet computers.

4. Improve the automation level of the instrument, add liquid leakage monitoring and waste liquid barrel overflow alarm functions. If liquid leakage occurs accidentally, the instrument will alarm and wait for processing. The automatic sampler can be equipped with a page detection and tracking device.
