1. Product introduction

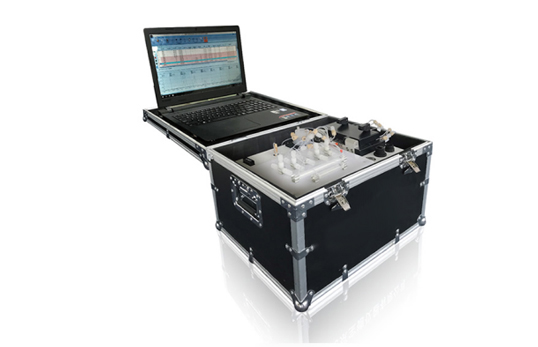

Portable /vehicle-mounted flow injection analyzer works based on the principle of flow injection spectrophotometry. It has a built-in high-sensitivity visible detector and double-beam measurement. It has the characteristics of low detection limit, good repeatability and fast analysis speed. It can be used for on-site detection or emergency monitoring of drinking water, surface water, groundwater, sewage, etc.

2. Product parameters

Instrument working environment

shelter from wind and rain; temperature 10℃-40℃; humidity≤85%

Instrument package size/weight

Host (single): 500×235×405 mm

Portable power bank: 370×230×300 mm

Portable reagent box: 390×275×250 mm

Host (single): 15 Kg

Portable power bank: 8.5 Kg

3. Product Features

Support the determination of various parameters, including volatile phenol, (total) cyanide, anionic surfactant, total phosphorus, total nitrogen, ammonia nitrogen, nitrate/nitrite, hexavalent chromium, etc.;

Comes with online distillation, extraction and other sample pretreatment functions, no need for manual sample processing;

Built-in standard curve, after sample injection, the concentration can be calculated directly according to the standard curve, which is convenient and quick;

Built-in cleaning solenoid valve, the internal pipeline is automatically cleaned after the sample is measured to avoid cross-contamination between samples;

With its own intelligent operating system and humanized operation prompts, it realizes continuous determination of multiple samples and shortens the analysis time of a single sample.

Equipped with a trolley case and a mobile power supply, it is easy to carry and suitable for on-site monitoring of water quality in environmental pollution events.

Equipped with a vehicle-mounted device and a mobile power supply, it is convenient to set up monitoring points along the river or around the lake, and is suitable for emergency detection or daily monitoring of water system environmental emergencies.

Optional 44-bit or 208-bit automatic sampling device to achieve fully automatic detection.
