1. Product introduction

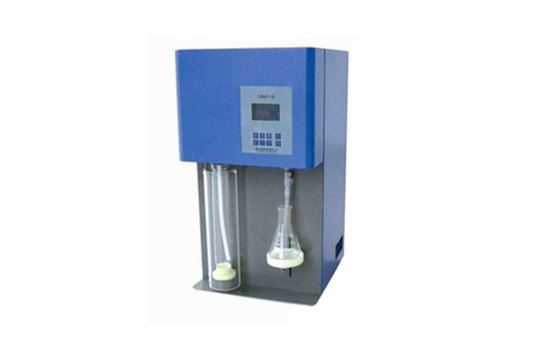

JC-QN-04C automatic Kjeldahl nitrogen analyzer is also called semi-automatic Kjeldahl nitrogen analyzer, semi-automatic nitrogen analyzer, etc. It is a product designed according to the principle of Kjeldahl nitrogen determination. The instrument is an indispensable inspection equipment for food factories and drinking water factories to do QS and HACCP certification.

2. Product parameters

1. Determination varieties: grain, feed, food, dairy products, beverages, soil, water, sediment and chemicals, etc.
2. Working mode: automatic (without titration)
3. Water inlet method: tap water and distilled water Two water inlet methods, wide application area
4. Sample volume: solid 0.20g~2.00g, semi-fixed 2.00g~5.00g, liquid 10.00ml~25.00ml
5. Measurement range: 0.1mgN~200mgN (milligram nitrogen)
6. Recovery rate: ≥99% (relative error, including digestion process)
7. Distillation speed: 5~15 minutes/sample (depending on sample volume)
8. Cooling water consumption: 3L/min
9. Repeat rate: relative standard deviation < ±1%
10. Power supply: AC220V/50Hz
11. Power: 1000W
12. Water supply: water temperature less than 20 degrees
13. Dimensions: 430mm×360mm×670mm
14. Weight: 25kg

3. Product features

1. JC-QN-04C automatic Type Kjeldahl nitrogen analyzer, using microcomputer for process control, including manual mode and automatic mode, which can be set and switched according to your needs;
automatic mode: complete the whole process of adding boric acid, adding alkali, distillation and ammonia gas absorption at one time , the volume of adding boric acid and alkali and the time of distillation and absorption process can be set by yourself.
In manual mode: the three processes of adding boric acid, adding alkali and distillation and absorption can be manually operated separately, and the volume and time can be controlled by themselves to meet the needs of professional users
2. Large-screen dot-matrix LCD display, full Chinese menu, touch buttons, simple and convenient operation.
3. Automatic distillation control, automatic water addition, automatic water level control, automatic water stop.
4. Various safety protections: digestive tube safety door device, steam generator water shortage alarm, water level detection fault alarm.
5. The maximum number of operation programs that can be stored is 250.
6. The shell of the instrument is made of customized plastic-sprayed steel plate, and the working area is made of ABS anti-corrosion panel, which is resistant to chemical reagent corrosion and mechanical damage to the surface, and is resistant to acid and alkali.
7. Water level detection, low water level alarm, automatic power off when the instrument control system fails.
8. The standard digestion furnace
