1. Product introduction

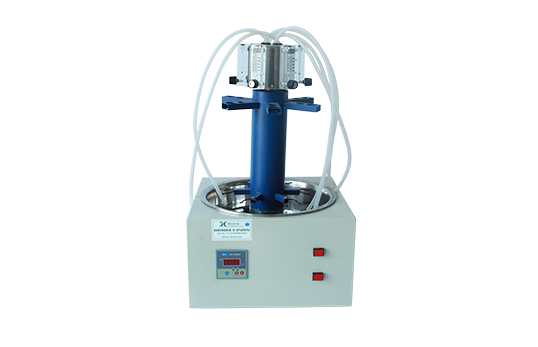

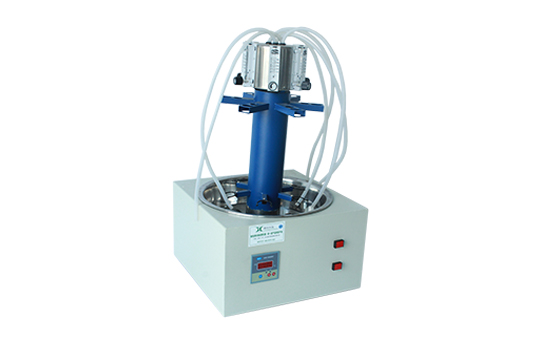

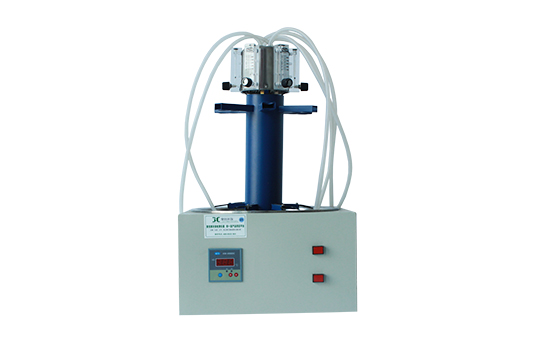

JC-GGC600 (S) water quality sulfide-acidification gas blowing instrument meets the needs of sample pretreatment for water quality sulfide determination. It is suitable for the determination of sulfide in surface water, groundwater, domestic sewage and industrial wastewater. The product has the characteristics of easy control, simple and quick operation and so on.

2. Product parameters

1. Number of samples: 6;

2. It can automatically control the lifting and lowering of the sample rack and gas distribution system, rotate the sample rack, and install the sample on the front, which is easy to operate;

3. Nitrogen flowmeter control: 0—10L/min;

4. The nitrogen flow of each sample is independently controlled, adjusted or closed, and the needle valve gas flowmeter can accurately control and display the total gas consumption;

5. Heating method: constant temperature water bath, heating power: 1000W;

6. Temperature range: room temperature—99.9°C, display mode: digital display, temperature control accuracy: ±1°C;

3. Product Features

1. The lifting and lowering of the sample rack and the gas distribution system are controlled electrically.

2. The built-in electric lifting system ensures the stable operation of the sample rack.

3. Built-in nitrogen pipeline design, no winding of the intake pipeline.

4. Each sample flow is independently controlled or closed.

5. Each sample is provided with an independent gas flow meter.

6. The gas flow meter accurately controls and displays the total gas flow.

7. The constant temperature water bath comes with a drain valve for easy cleaning and maintenance.

8. Constant temperature water bath heating method, heating evenly.

9. It adopts full spray plastic material, which has the characteristics of acid reduction, corrosion resistance and high temperature resistance.
