1. Product introduction

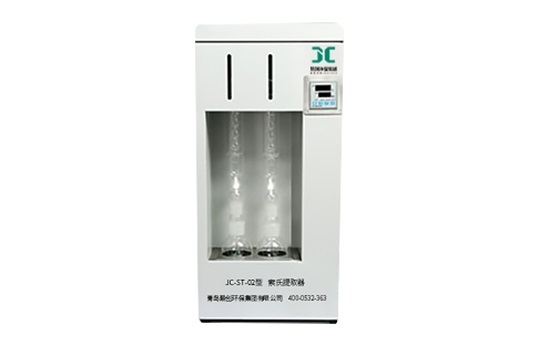

JC-ST-02 Soxhlet extractor is an equipment developed by Soxhlet extraction technology for laboratory determination of fat content. It has reasonable design, stable performance, high accuracy, labor-saving and time-saving operation, and the extraction method conforms to (GB5512-85) standard. This instrument is an ideal equipment for Soxhlet extraction in food, oil, feed, soil and other industries.

2. Product parameters

1. Product model: JC-ST-02
2. Number of extracted samples per batch: 2
3. Extraction bottle volume: 500ml/piece

4. Extraction sample volume: 0.5-20g/piece
5. Extraction time can be

6. The extraction solvent of the fat analyzer can be automatically recovered
7. Temperature control range: room temperature +5℃~100℃
8. Power supply voltage: 220V+10V frequency 50Hz
9. Electric heating power: 300W
10. Controller: Liquid crystal display
11. Temperature control accuracy: ±0.3℃
12. Heating time: about 10 minutes
13. Solvent recovery rate: ≥80%

14. Dimensions: 425*230 *840mm

15. Weight :17kg

3. Product Features

1. Heating extraction, solvent recovery and cooling are composed of three parts;
2. During operation of the fat analyzer, the heating temperature can be adjusted according to the boiling point of the reagent and the ambient temperature;
3. The sample is soaked and extracted repeatedly during the extraction process, so as to achieve the purpose of rapid extraction;
4. The solvent can be automatically recovered, which greatly facilitates the use of users and saves a lot of time;
5. The extraction time of the fat analyzer can be adjusted, and the alarm will be alarmed when it arrives.
