1. Product introduction

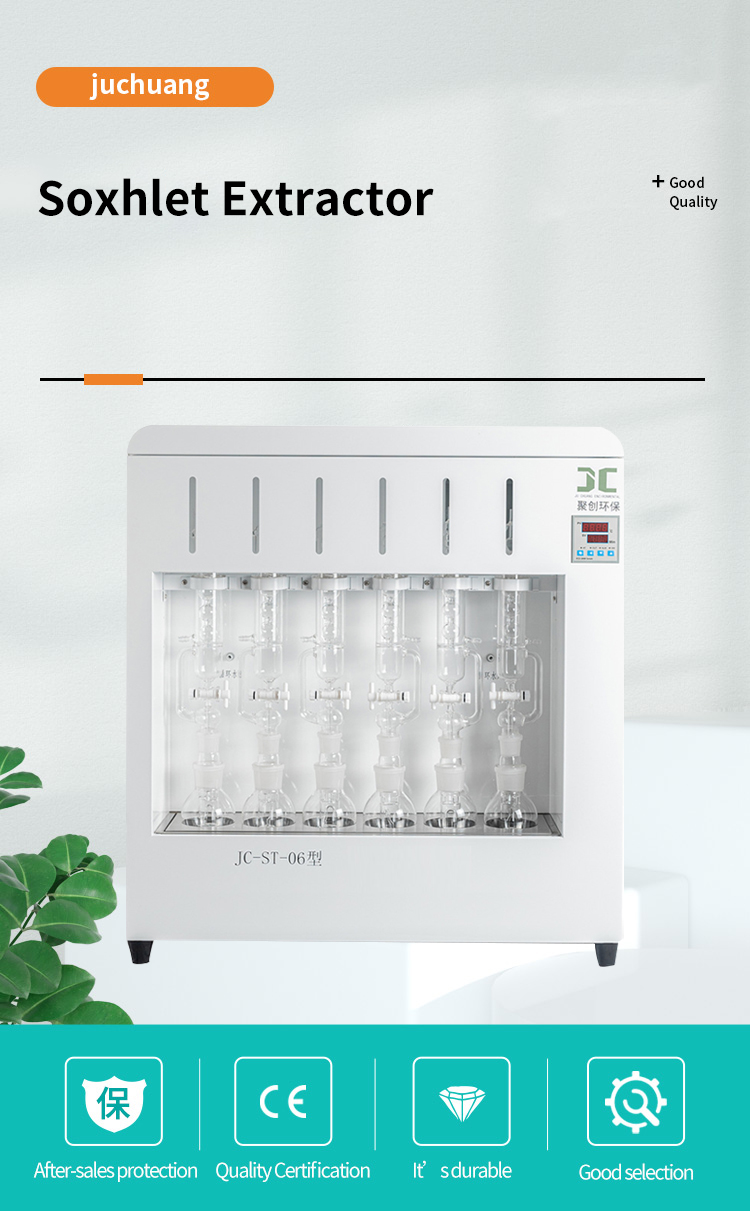

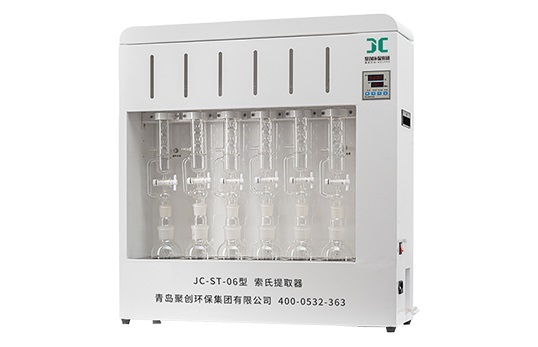

JC-ST-06 Soxhlet extractor is an equipment developed by Soxhlet extraction technology for laboratory determination of fat content. It has reasonable design, stable performance, high accuracy, labor-saving and time-saving operation, and the extraction method conforms to (GB5512-85) standard. This instrument is an ideal equipment for Soxhlet extraction in food, oil, feed, soil and other industries.

2. Product parameters

1. Product model: JC-ST-06
2. Number of extracted samples per batch: 6;

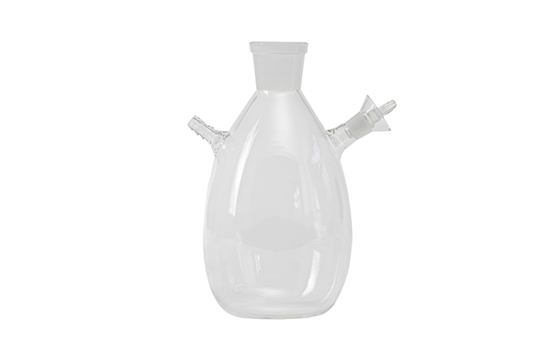

3. Volume of extraction bottle of fat analyzer: 250ml/piece or 500ml optional;
4. Extraction sample volume: 0- 5g/pc;
5. Temperature control range: room temperature +5℃~100℃
6. Power supply voltage: 220V±10V frequency 50Hz;
7. Electric heating power: 800W;

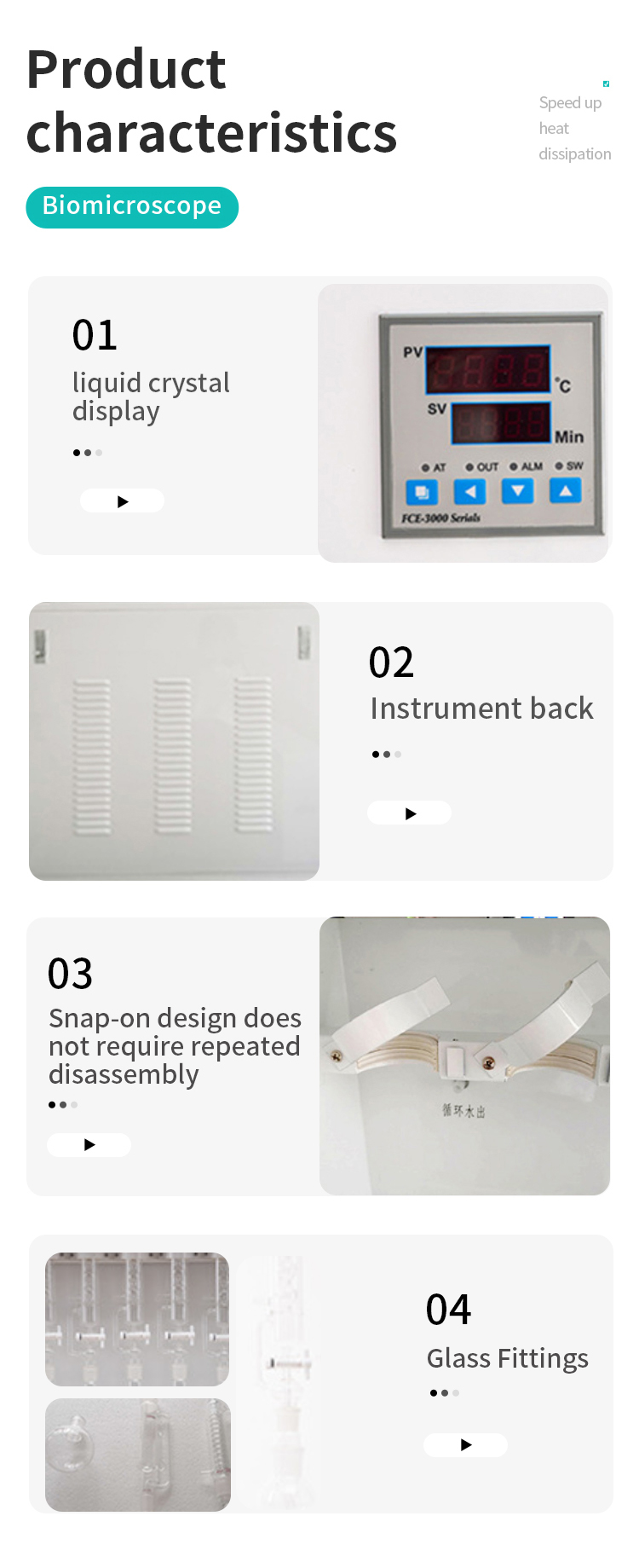

8. Controller: LCD display
9. Temperature control accuracy: ± 0.3℃
10. Heating time: about 10 minutes
11. Recovery system: automatic
12. Solvent recovery rate: ≥80%
13. Dimensions: 750*230*790mm;
14. Weight: 26kg

3. Product features

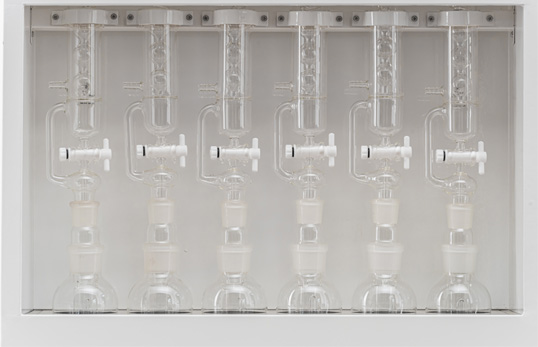

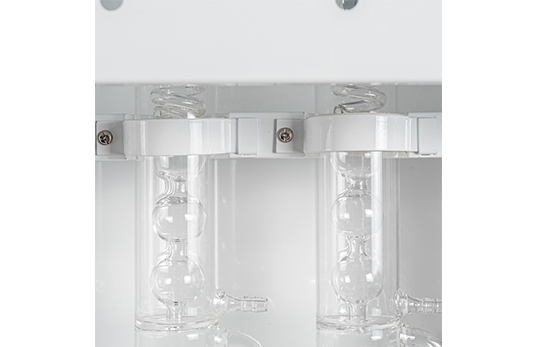

1. Heating pump It consists of three parts: extraction, solvent recovery and cooling;
2. The heating temperature can be adjusted according to the boiling point of the reagent and the ambient temperature during operation of the fat analyzer;
3. The sample is soaked and extracted repeatedly during the extraction process, so as to achieve the purpose of rapid extraction ;
4. The solvent can be automatically recovered, which greatly facilitates the use of users and saves a lot of time;
5. The extraction time of the fat analyzer can be adjusted, and the alarm will be alarmed when it arrives.
