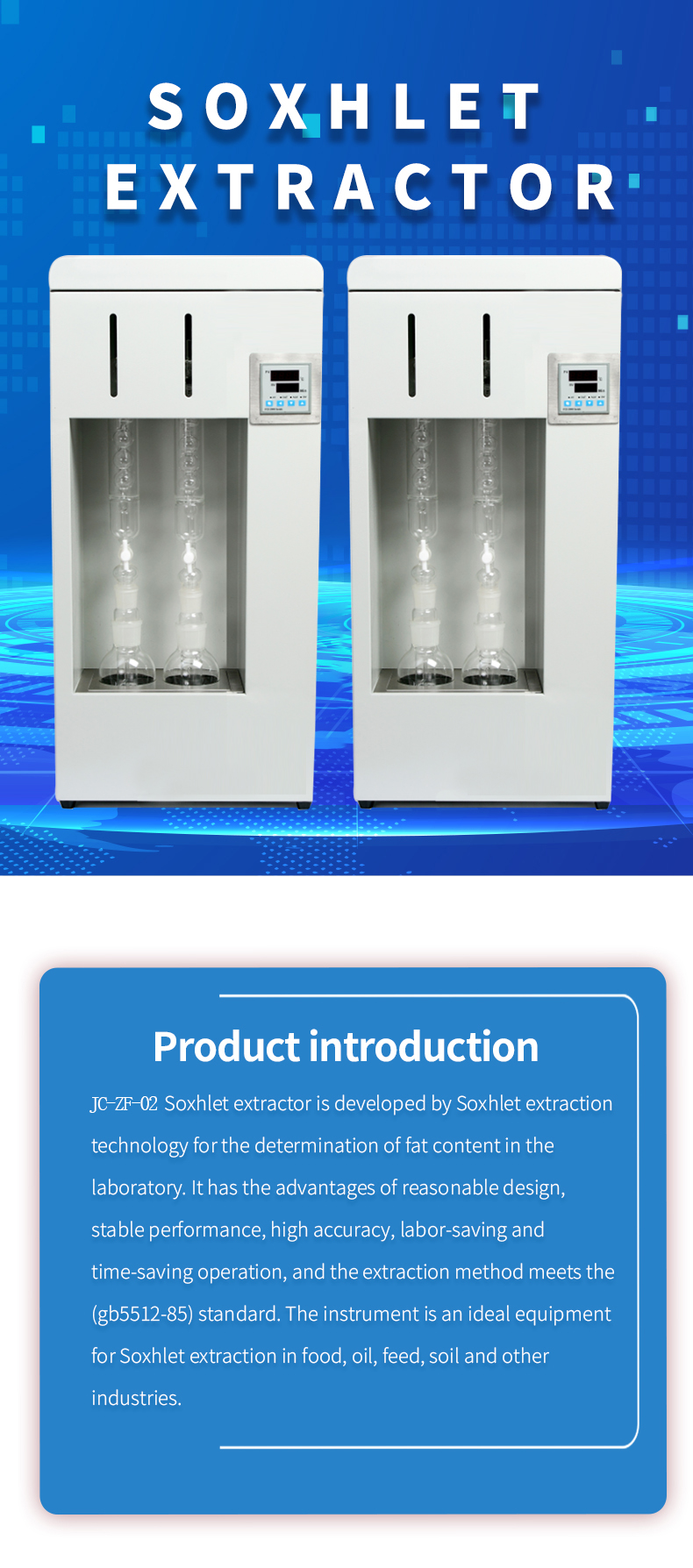

1. Product introduction

JC-ZF-02 fat analyzer is an equipment developed by Soxhlet extraction technology for laboratory determination of fat content. It has reasonable design, stable performance, high accuracy, labor-saving and time-saving operation. The extraction method conforms to ( GB5512-85) standard. This instrument is an ideal equipment for Soxhlet extraction in food, oil, feed, soil and other industries.

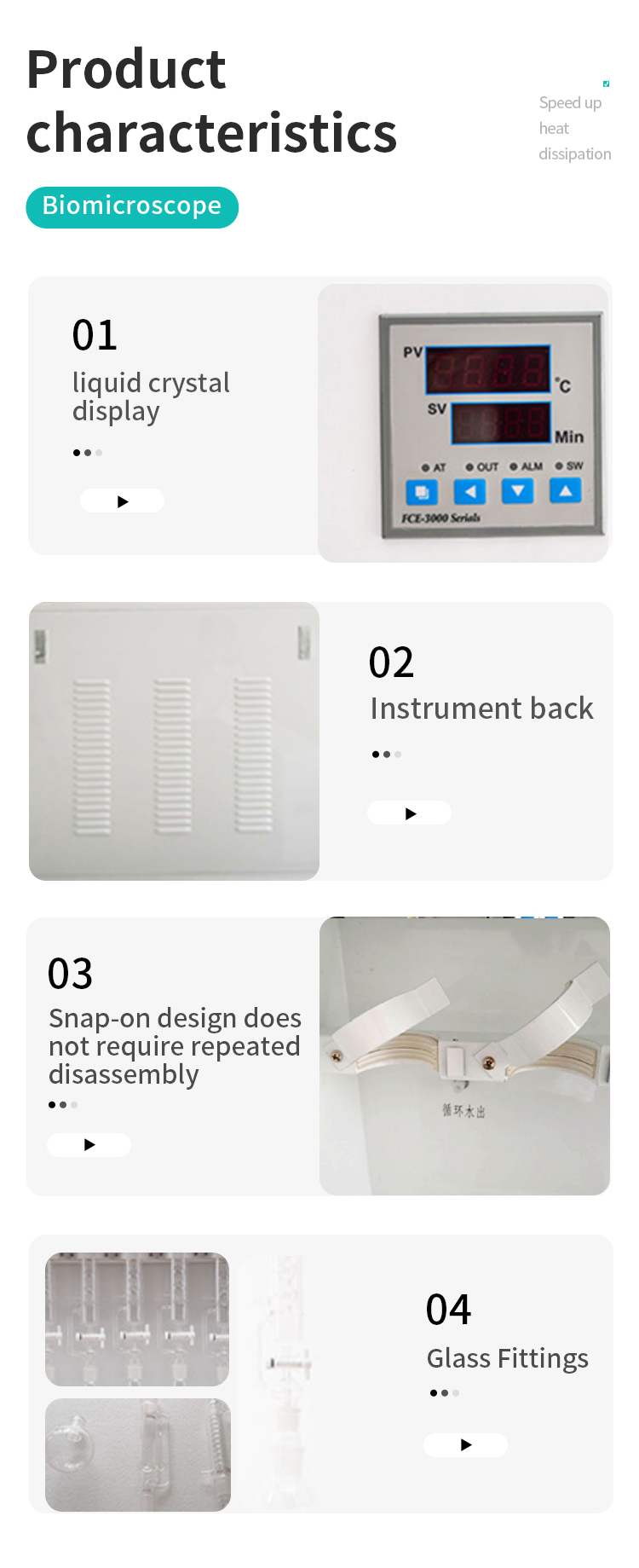

2. Product Features

1. Heating extraction, solvent recovery and cooling are composed of three parts;

2. During operation of the fat analyzer, the heating temperature can be adjusted according to the boiling point of the reagent and the ambient temperature;

3. The sample is soaked and extracted repeatedly during the extraction process, so as to achieve the purpose of rapid extraction;

4. The solvent can be automatically recovered, which greatly facilitates the use of users and saves a lot of time;

5. The extraction time of the fat analyzer can be adjusted, and the alarm will be alarmed when it arrives.

3. Product parameters

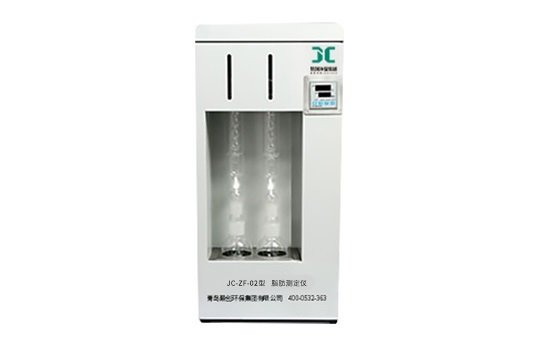

1. Product model: JC-ZF-02

2. Number of extracted samples per batch: 2

3. Extraction bottle volume: 500ml/pc

4. Extraction sample volume: 0.5-20g/piece

5. The extraction time can be adjusted, and the alarm will be alarmed when it arrives

6. The extraction solvent of the fat analyzer can be automatically recovered

7. Temperature control range: room temperature +5℃~100℃

8. Power supply voltage: 220V+10V frequency 50Hz

9. Electric heating power: 300W

10. Controller: LCD display

11. Temperature control accuracy: ±0.3℃

12. Heating time: about 10 minutes

13. Solvent recovery rate: ≥80%

14. Dimensions: 425*230*840mm

15. Weight: 17kg
