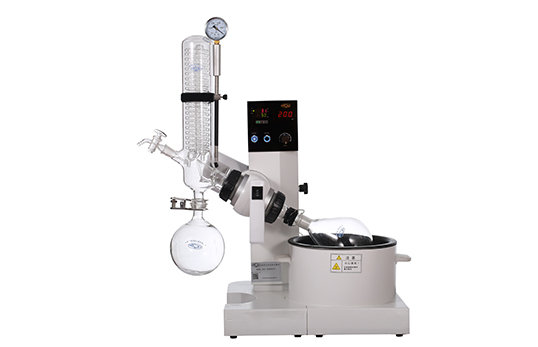

Product name:Water and oil bath 3L rotary evaporator -
Order number: -
Model:JC-ZFY-3L -
Stock status:Available -
Logistics:By sea, by air, express, etc.
- Product Introduction
- Technical data
- Feature
-
Rotary evaporator, also called rotary evaporator, is a commonly used equipment in laboratories. It consists of a motor, distillation flask, heating pot, condenser, etc. It is mainly used for continuous distillation of volatile solvents under reduced pressure, and is used in chemistry and chemical engineering.
And other fields. JC-ZFY-3L A comprehensive oil bath and water bath dual-purpose rotary evaporator developed by our company. The whole machine is beautiful and generous, reasonable and compact, simple and convenient to operate, accurate temperature control, and reliable performance.
In addition to the practical and user-friendly design, robust and durable performance is also the most important feature of the product. The JC-ZFY-3L type is equipped with two types, A type (ball ground condensing tube) and B type (standard ground threaded condensing tube) for users to choose from.
-
Model
JC-ZFY-3L-A
JC-ZFY-3L -B
Main machine
Rocker button automatic lifting 0-150 mm
Vacuum indicator
When the vacuum reaches the lowest level, close the valve to keep the vacuum degree displayed in the rotary steamer, reduce laboratory noise and extend the service life of the vacuum pump.
Evaporation capacity
Max.31ml/min
Rotating speed
Digital display/forward/reverse speed 0-310 rpm; power 40W
Heat up the pot
One-time forming Teflon composite pot φ26×15cm fully enclosed heater power 1.5KW
temperature
Automatic temperature control, digital display Water bath: room temperature -99°±1°C; oil bath: room temperature -180°±3°C;
Cooler
Vertical type, ball mill condenser pipe cooling area 0.31㎡
Vertical type, standard condenser pipe cooling area 0.31㎡
Feeder
The valve type feeding pipe is sleeved with the tetrafluoroethylene pipe and the water retaining ring
Sealing ring
Fluorine rubber + PTEF imported material combination vacuum sealing gasket
Capacity range
0.25--2L
Total work rate
1.5kw, input voltage~220v/50Hz
volume and weight
Outsourcing size (length×width×height) 71×46.5×79cm Gross weight 35KG
Instrument size
(Length×Width×Height) 70×43×86cm
Accessory
S35 ball mill mouth collection bottle 2L1 29# standard mouth rotating bottle 1L, 3L each
24# standard mouth collection bottle 2L1 pc 29# standard mouth revolving bottle 1L, 3L each
-
1. The water bath can be used for both water bath and oil bath, and the temperature range is: room temperature -180℃. The heating tube automatically stops heating when the temperature is higher than the set temperature. The heating pot is equipped with a safety handle, has a moderate volume and a rapid temperature rise. The heating pot equipped with air duct type cooling device adopts Teflon composite pot, which is easy to clean.
2. Electronic stepless speed regulation. Digital display of speed 0-310 rpm, optional forward and reverse function. It can rotate intermittently from left to right, suitable for drying process.
3. Large condensing area, dripping point and anti-backflow design. (Effectively improve work efficiency).
4. The evaporating flask adopts a hand-pushing mechanical device, which is easy to disassemble, safe and reliable.
5. The design is equipped with a vacuum gauge and a valve to control the vacuum degree (to prevent the liquid in the vacuum pump from backwashing into the glass container of the rotary evaporator, so that the experiment can be successful at one time).
