PRODUCTS CENTER
-

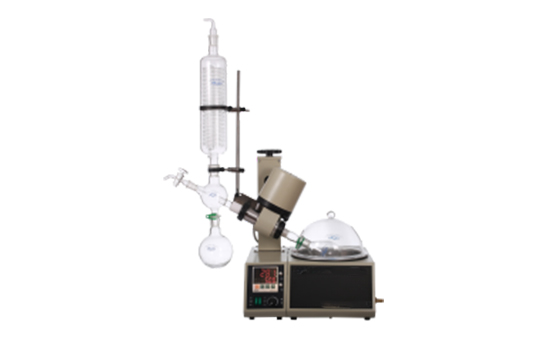

Product name：Automatic temperature control rotary evaporator -
Order number： -
Model：JC-ZF-X52AA -
Stock status：Available -
Logistics： By sea, by air, express, etc.
- Product Introduction
- Technical data
- Feature
-
The rotary evaporator is a device that uses a rotary evaporator (flask) to increase the evaporation area and place it in a water bath under reduced pressure while rotating and heating, so that the solution in the bottle is diffused and evaporated. It is an ideal basic instrument for concentration, drying and recycling in chemical industry, institutions of higher learning and scientific research laboratories for manufacturing and analysis experiments.
JC-ZF-52AA rotary evaporator, the main metal parts are made of stainless steel, rust-proof aluminum alloy, compact structure, beautiful appearance, durable, strong practicability, the sealing system is made of fluorine rubber + double PTEF imported materials and glass shaft combination, not falling Slag and wear resistance extend the service life
-
model
JC-ZF-X52AA
Main machine
Button type automatic up and down lifting 0-150 mm
Ultimate vacuum
Below 399.9Pa(3mmHg)
Evaporation capacity
Max.21ml/min
Rotating speed
Knob type stepless speed regulation 0-150 rpm; power 25W
Heat up the pot
One-time forming 4L Teflon composite pot φ22×11.5cm Power 1KW
temperature
Automatic temperature control, digital display Water bath: room temperature -99°±1°C
Cooler
Vertical, ball-milling condenser, convenient and quick installation, strong evaporation capacity
Feeder
Valve type feeding pipe sleeved with tetrafluoroethylene pipe + water retaining ring
Sealing ring
Adopt PTFE vacuum sealing gasket and glass tube tightly combined, no slag, wear resistance, prolong service life
Capacity range
0.25--2L
Total work rate
1kw Input voltage～220v/50Hz
volume and weight
Outsourcing size (length*width*height): 56.5×48×54cm (22kg)
Instrument size
69×38×98cm
Factory standard
A ball mill mouth collection bottle of 500ml, a 24# standard mouth rotating (eggplant-shaped) bottle of 250ml
-
1. The main metal parts are made of stainless steel, rust-proof aluminum alloy, compact structure, beautiful appearance, durable and strong practicability
2. The sealing system adopts the combination of fluorine rubber + double PTEF imported material and glass shaft, which does not drop slag, wear-resisting and prolongs the service life.
3. The temperature range is: room temperature -99℃. When the temperature is higher than the set temperature, the heating tube automatically stops heating.
4. The L water bath is made of SUS304+Teflon composite pot formed in one time, which is easy to clean.
