Product name：Water bath rotary evaporator -
Order number： -
Model：JC-ZFS-2L -
Stock status：Available -
Logistics：By sea, by air, express, etc.
- Product Introduction
- Technical data
- Feature
-
The rotary evaporator is a device that uses a rotary evaporator (flask) to increase the evaporation area and place it in a water bath under reduced pressure while rotating and heating,
so that the solution in the bottle is diffused and evaporated.
It is an ideal basic instrument for concentration, drying and recycling in chemical industry, institutions of higher learning and scientific research laboratories for manufacturing and analysis experiments.

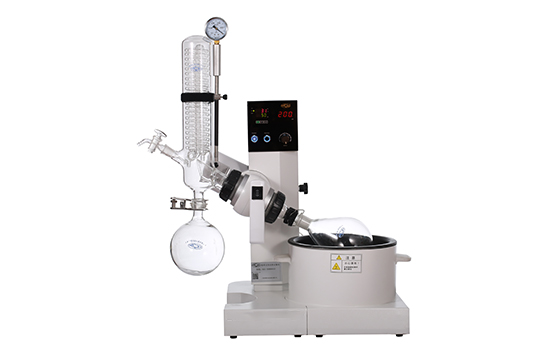

JC-ZFS-2L is a water bath type rotary evaporator developed by our company.
The whole machine is beautiful and elegant, reasonable and compact, easy to operate, accurate temperature control, and reliable performance.
In addition to practical and user-friendly design, sturdy and durable performance is also the most important feature of the product.
-
model
JC-ZFS-2L
rotational speed
The LCD screen displays 0~310rpm/min,
Evaporation capacity
Max.25ml/min(H2O)
Temperature adjustment range
Water bath~room temperature-99℃±0.5℃
Bathtub Material/Size
One-time forming Teflon coating, easy to clean, size: φ23×13cm, corrosion-resistant, high-temperature-resistant heating pot with safety handle, shell heat insulation to prevent scalding, moderate volume, rapid heating.
sample bottle
Intermittent left and right rotation, the intermittent time can be adjusted from 0 to 60s, which can be used for drying powder samples
Lifting stroke
Touch-type + handle-type double automatic balance lifting (lifting stroke 150mm) drop end point
temperature control
Microcomputer PID controller, digital display
temperature setting
Knob encoder, rotary input setting, large LCD display, convenient and quick
Safety performance
Timing function (0-999min): After reaching the predetermined time, the equipment will automatically stop working, return to the standby state, and provide early warning protection.
heater
Totally enclosed heater power 1.5KW
Sample bottle usable capacity
0.25--2L
sealing parts
Imported PTFE and special synthetic materials are selected, and the mold is synthesized by special process technology to enhance sealing, anti-corrosion and wear resistance.
condenser tube
Vertical, three-layer ball-milled serpentine condenser, condensation area: 0.18㎡, with drip point and anti-backflow design. (effectively improve work efficiency)
Use ambient temperature
5℃~40℃
Factory configuration
Sample bottle: 1L*1 29# eggplant-shaped bottle, 2L*1 29# round-bottom bottle, recovery bottle: 1L*1 S35 ball-milled collection bottle.
input power
AC220V/50HZ
-
1. Large LCD display, menu interface, knob switch operation
2. Heating pot, Teflon coating, easy to clean, corrosion resistance, high temperature resistance
3. Safe operation function in unmanned mode, automatic standby after the experiment is over
4. Dedicated bottle withdrawal knob design, simple and convenient bottle withdrawal
5. Sealing parts: imported PTFE + special process mold synthesis
6. Touch type + handle type double automatic lifting, lifting is safer
7. Rotating DC motor power: 70W, stable start
8. Condenser pipe is designed with drip point and anti-backflow device
9. Intermittent timing forward and reverse rotation can be set, suitable for drying process
10. Optional vacuum system, which can be set to control any vacuum degree
11. The heating pot is designed with a safety handle, and the shell is insulated to prevent burns
12. Equipped with protective cover, heat preservation and energy saving, splash-proof, explosion-proof
