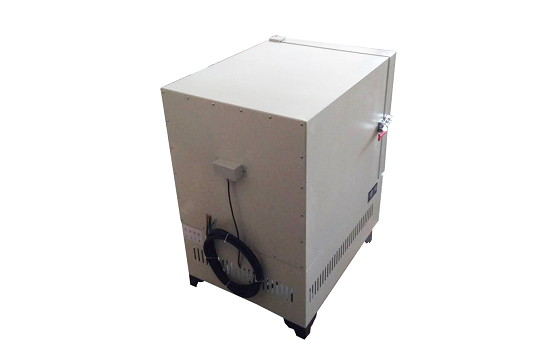

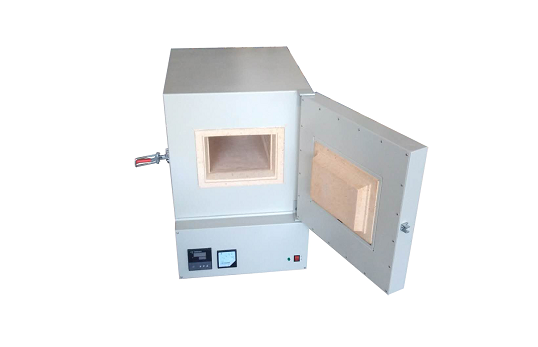

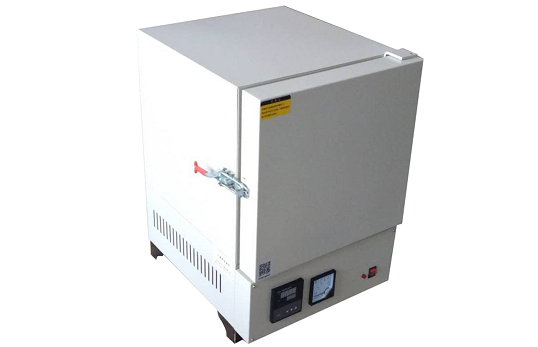

Product name：Intelligent muffle furnace JC-MFA series -
Order number： -
Model：JC-MFA -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
The intelligent muffle furnace is used in various industrial and mining enterprises, colleges and universities, scientific research units for element analysis, quenching, annealing, and heating of small steel parts, and can also be used for high-temperature heating such as sintering, dissolving, and analysis of metals and ceramics. The design of the box body is new and beautiful, and it is sprayed with rough surface. The inner side of the furnace door and the panel of the box body are made of high-quality stainless steel to ensure the durability of the instrument. Thirty-segment microcomputer control with program, with powerful programming function, can control the heating rate, heating, constant temperature, multi-band curve arbitrary setting, optional software can be connected to the computer, monitor, record temperature data, making the reproducibility of the test possible. The instrument is equipped with electric shock, leakage protection system and secondary over-temperature automatic protection function to ensure the safety of users and instruments.
2. Product parameters
model
High temperature (℃)
Furnace size (mm)
Volume (L)
power supply
Power (KW)
JC-MF-1A
100 ~ 1000℃
120*200*80
2
220V/50HZ
2.5
JC-MF-2A
200*300*120
7
220V/50HZ
4
JC-MF-3A
250*400*160
16
380V/50HZ
8
JC-MF-4A
300*500*200
30
380V/50HZ
12
JC-MF-5A
100 ~ 1200℃
120*200*80
2
220V/50HZ
2.5
JC-MF-6A
200*300*120
7
220V/50HZ
5
JC-MF-7A
250*400*160
16
380V/50HZ
10
JC-MF-8A
100 ~ 1300℃
250*150*100
3.7
220V, 50Hz
4
technical parameter
Fluctuation: ±2°C Display accuracy: 1°C Heating rate: ≤10°C/min; (any speed below 10°C per minute can be adjusted arbitrarily) Temperature measurement: 1000°C is K-graded nickel-chromium-nickel-silicon thermoelectric Even 1200℃ is S-graded platinum rhodium--platinum thermocouple; control system: LTDE automatic programmable instrument, PID adjustment, display accuracy 1℃ Complete set of electrical appliances: brand contactor, cooling fan, solid state relay; time system: available Set the heating time, constant temperature time control, automatic shutdown when the constant temperature time arrives; over-temperature protection: built-in secondary over-temperature protection device, double insurance. ; Operation mode: full-scale adjustable constant temperature, constant operation; program operation.
3. Product Features
1. High- aluminum inner tank, good wear resistance, 1000 degrees, high temperature heating wire heats on all sides, good uniformity.
2. The inner side of the furnace door and the panel and shell of the box body are made of high-quality thin steel plates, and the surface
is sprayed with plastic
. The system adopts LTDE technology, with 30-band programmable function, two-level over-temperature protection
