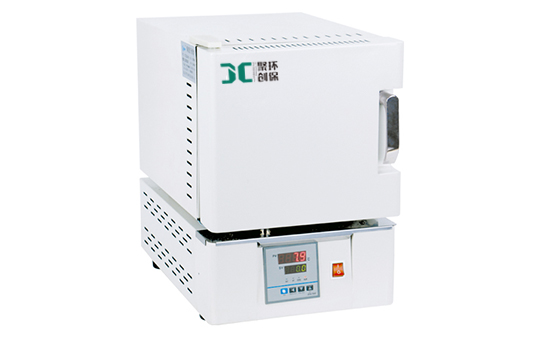

Product name：JC-TC series ceramic fiber muffle furnace -
Order number： -
Model：JC-TC -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
This series of resistance furnaces is a periodic operation type, which is used in laboratories, industrial and mining enterprises, scientific research units, and colleges for the sintering of metal materials and ceramic materials, the heat treatment of some single crystals, the detection and research of high temperature re-burning shrinkage of refractory materials, and general small steel It is used for heating during heat treatment such as quenching, annealing and tempering.
2. Product parameters
model
JC-TC10-02
JC-TC10-07
JC-TC10-16
JC-TC12-02
JC-TC12-07
JC-TC12-16
JC-TC13-04
JC-TC13-18
Heating power (KW)
1.5
3
6
1.5
3
6
4
8
Rated temperature (℃)
1000
1200
1300
Supply voltage (V)
220V50Hz
380V50Hz
220V50Hz
380V50Hz
220V50Hz
380V50Hz
Phase
single
three phase
single
three phase
single
three phase
Empty furnace heating time (min)
≤15
≤20
≤40
Volume (L)
2
7
16
2
7
16
4
18
Studio size (D*W*H) (mm)
200*120*80
300*200*120
400*250*160
200*120*80
300*200*120
400*250*160
250*150*100
500*200*180
Dimensions (D*W*H) (mm)
490*330*465
515*410*550
690*525*645
490*330*465
515*410*550
690*525*645
715*610*750
890*725*845
Net weight/gross weight (kg)
30/34
40/50
76/81
30/34
40/50
77/81
50/60
86/91
Optional : LCD instrument, program instrument, printer, computer interface
3. Product Features
1. The furnace adopts all-ceramic fiber structure, which is light in weight, small in heat capacity, small in empty furnace loss, and saves more than 70% of energy.
2. The heating speed is fast, and the heating speed can be adjusted. From room temperature to 1000 ℃, it generally takes 15 to 30 minutes.
3. The shell is made of high-quality cold-rolled steel plate, and the surface is treated with plastic spraying. The furnace door adopts a side-opening structure, which can be opened and closed flexibly, and has a power-off device to ensure the safety of use.
4. The control system adopts high-precision PID intelligent instrument, which has self-tuning, temperature error correction, timing, over-temperature alarm, good temperature control stability and high precision. The control circuit adopts non-contact, which has the characteristics of no noise, high reliability and high performance.
