PRODUCTS CENTER
-
Product name：JC-JSY150 Series Dry Thermostat Dry Bath Incubator (Metal Bath) -
Order number： -
Model：JC-JSY150 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
- Details Page
-

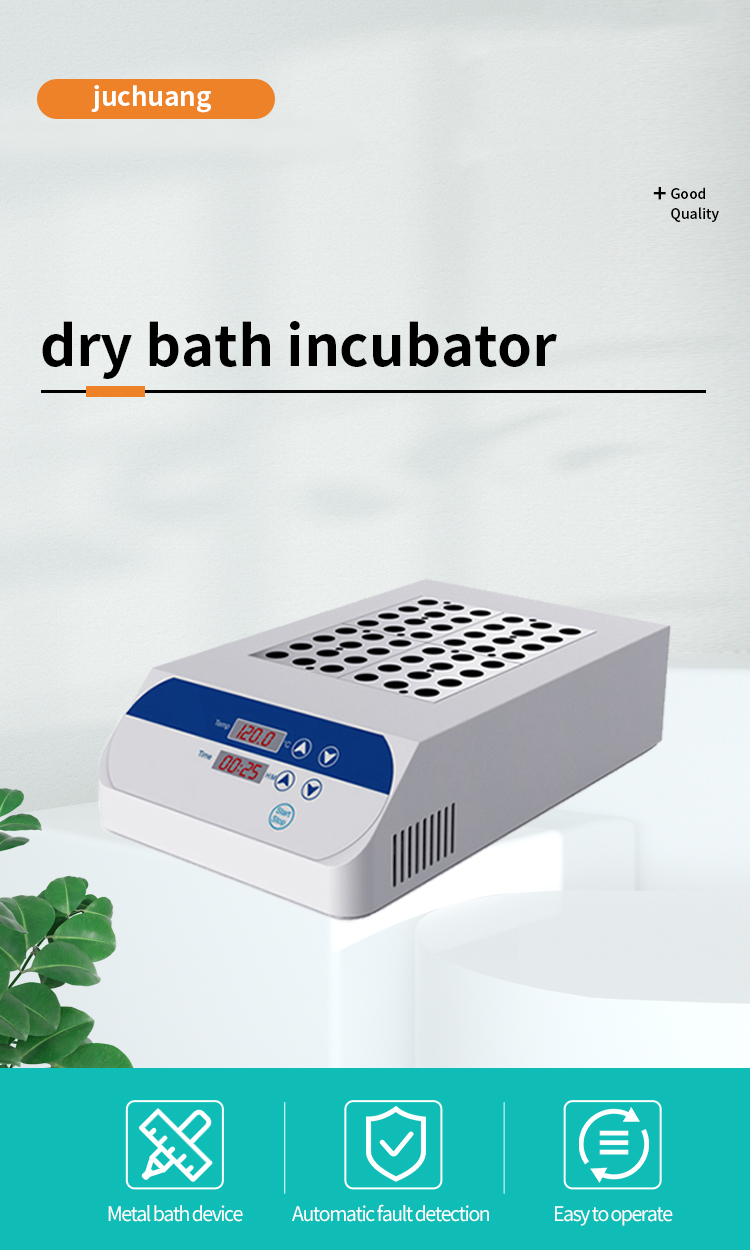

1. Product introduction
JC-JSY150 series dry thermostat is a high temperature constant temperature metal bath device controlled by microcomputer, the high temperature can reach 150 ℃, it can replace the traditional water bath device, it is easy to use; it can be widely used in the preservation and reaction of samples.
2. Product parameters
Product number
Performance
JC-JSY 150-1
JC - JSY 150-2
JC- JSY 150-3
Temperature control range
Room temperature+5℃～150℃
Room temperature+5℃～150℃
Heating time
≤ 30 minutes (from 20℃ to 150℃)
≤ 30 minutes (from 20℃ to 150℃)
Temperature Stability@40
±0.3℃
Temperature Stability@100
±0.5℃
Temperature Stability@120℃
±1℃
Display accuracy
0.1℃
Timing time setting
0-99h59min
MAX temperature
150℃
150℃
MAX power
200W
400W
600W
Product Size
260x220x100mm
260x220x95mm
360x220x100mm
Module model
See JSY Series Replaceable Modules

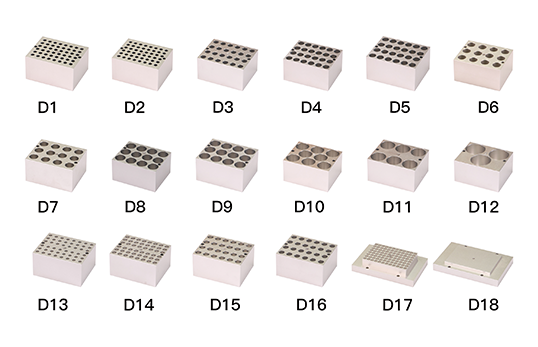

JSY series replaceable modules:
model
Tube diameter
number of test tubes
Module size
D1
6mm
48
96.5X76.5X50
D2
7mm
48
96.5X76.5X50
D3
10mm
twenty four
96.5X76.5X50
D4
12mm
twenty four
96.5X76.5X50
D5
13mm
twenty four
96.5X76.5X50
D6
15mm
12
96.5X76.5X50
D7
16mm
12
96.5X76.5X50
D8
19mm
12
96.5X76.5X50
D9
20mm
12
96.5X76.5X50
D10
26mm
8
96.5X76.5X50
D11
28mm
6
96.5X76.5X50
D12
40mm
3
96.5X76.5X50
D13
0.2mL
48
96.5X76.5X50
D14
0.5mL
48
96.5X76.5X50
D15
1.5mL
twenty four
96.5X76.5X50
D16
2 mL
twenty four
96.5X76.5X50
D17
0.2mL
96
96.5X153X33.5
D18
flat
96-well microtiter plate
96.5X153X22.5
D19
can be customized
can be customized
can be customized
Note: D17 and D18 occupy 2 standard module spaces. For example: JC-JSY 150-2 can only accommodate 1 D17 or 1 D18.

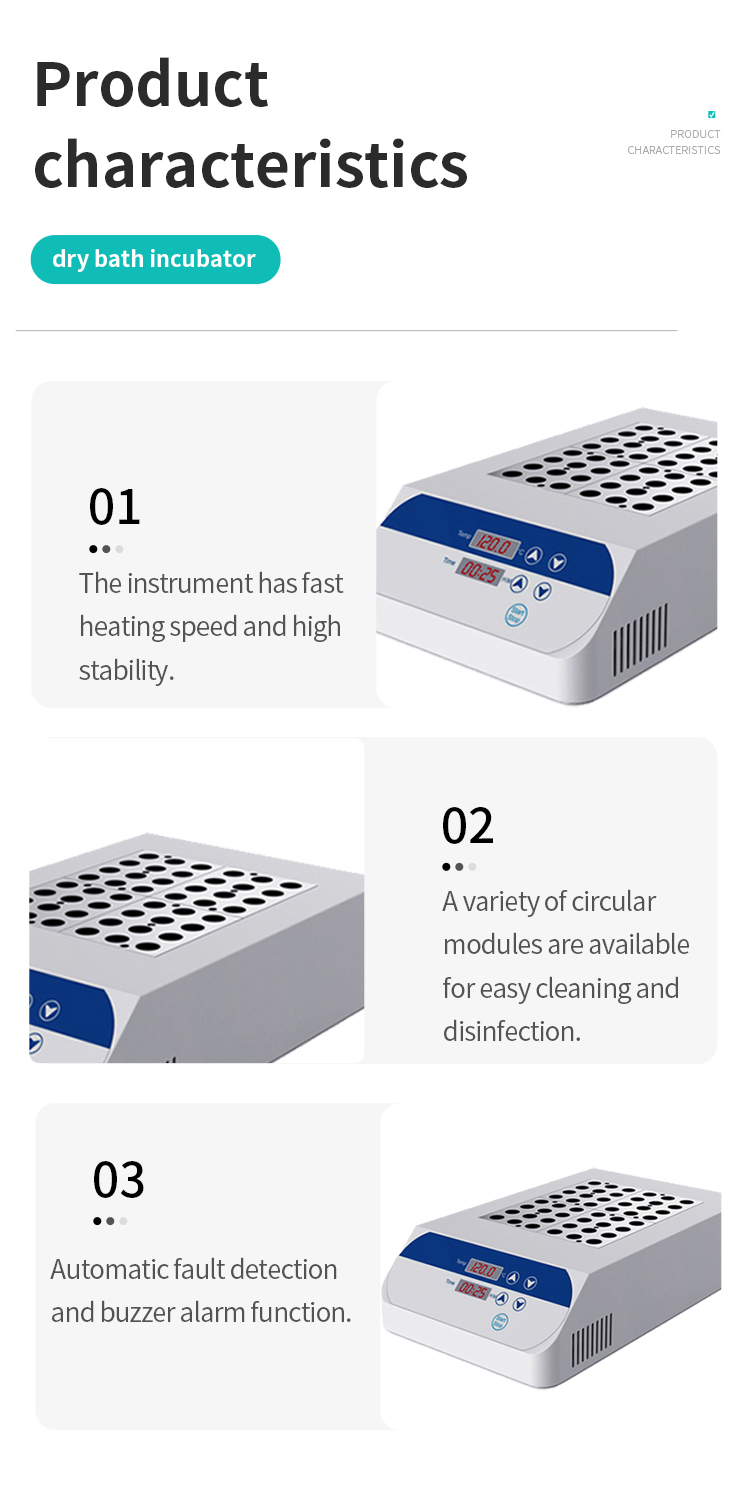

3. Product Features
1. Temperature and time LED display
2. Instant temperature display, time decrement display3. Automatic fault detection and buzzer alarm function
4. Temperature deviation calibration function
5. Convenient module replacement for easy cleaning and disinfection
6. Built-in over-temperature protection device
-
