Product name：JC-JSY100R/L Dry Thermostat (Metal Bath) -
Order number： -
Model：JC-JSY100R/L -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction

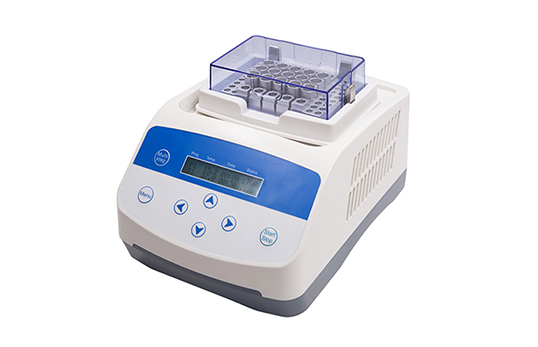

JC-JSY100R/L dry thermostat is a DC precise temperature control device using semiconductor refrigeration technology. It integrates semiconductor refrigeration and heating functions and greatly shortens the time of experimental operation. It is an ideal automation tool for sample incubation, catalysis, preservation and other reaction processes. It has multi-purpose functions such as heating, cooling, and temperature custom programming, which can meet the needs of different users.
2. Product parameters
Product number
Technical indicators
JC-JSY1 00 R Dry Thermostat (Heating Type)
JC-JSY 100 L dry thermostat (cooling type)
Temperature control range
Room temperature+5℃—100℃
-10℃—100℃
Temperature control accuracy
±0.3℃
Temperature Stability@40
±0.3℃
Temperature Stability@100
±0.3℃
Timing
0-99h59m
Display accuracy
0.1℃
Heating time
≤15min (from 20℃ to 100℃)
Timing time setting
0-99h59min
MAX temperature
100℃
cooling time
/
≤30min (room temperature drops by 30°C), (detected when the ambient temperature is below 26°C);
MAX power
150W
net weight
2.7Kg
Dimensions
300x220x170mm
Module model selection
see replaceable module

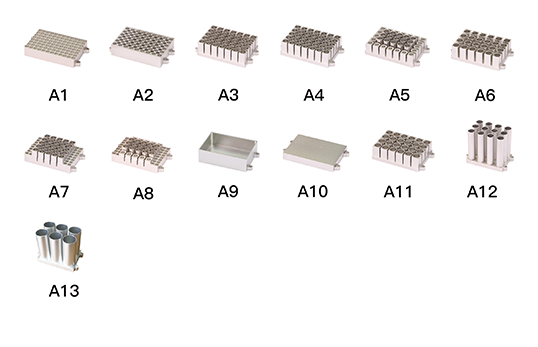

Replaceable modules:
model
Aperture and number of test tubes
MAX temperature
A1
96 × 0.2Ml standard board
100℃
A2
54 × 0.5Ml centrifuge tubes
100℃
A3
35 × 1.5Ml centrifuge tubes
100℃
A4
35 × 2.0Ml centrifuge tubes
100℃
A5
20 × 0.5Ml+15 × 1.5Ml centrifuge tubes
100℃
A6
24 × diameter≤φ12mm test tube
100℃
A7
32 × 0.2Ml +25 × 1.5Ml centrifuge tubes
100℃
A8
32 × 0.2Ml +10 × 0.5Ml+15 × 1.5Ml centrifuge tubes
100℃
A8-2
32 × 0.2Ml +10 × 0.5Ml+15 × 2.0Ml centrifuge tubes
100℃
A9
103 × 67 × 30 (square slot module)
100℃
A10
96 × 0.2Ml microtiter plate (flat bottom)
100℃
A11
24 × 5ml (high lid)
100℃
A12
12 × 15ml (high lid)
100℃
A13
6 × 50ml (high lid)
100℃
A14
can be customized
100℃
3. Product Features
1. LCD liquid crystal display
2. Unique temperature control technology, accurate temperature control, good linearity, and programmable function
3. With power-off recovery function, the instrument can automatically resume operation according to the original set program after power-off recovery
4. Microprocessor control, good temperature control linearity.
5. With timing function, the cultivation time can be set arbitrarily within the range of 0~100 hours
6. A variety of standard sample modules are available for easy replacement
7. Temperature calibration function.
8. Multiple safety protection functions, in line with CE safety standards, safe and reliable
