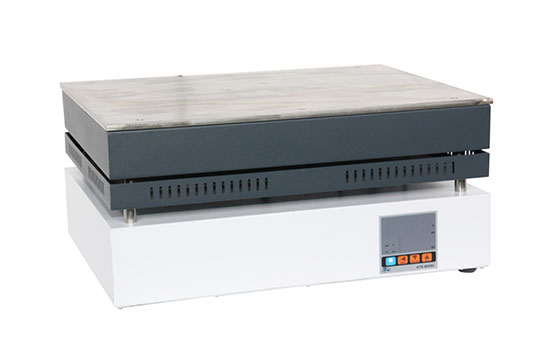

Product name：JC-DB series stainless steel heating plate -
Order number： -
Model：JC-DB -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
Electric heating plate is suitable for baking and drying in laboratories of colleges and universities, petroleum, chemical industry, environmental protection and other industries. This heater has the advantages of large heating area, fast heating, no open flame, uniform heating, light weight and economic With the advantages of energy, not easy to damage glassware, etc., this product is an ideal heating equipment for various laboratories and various fine chemical units.
2. Product parameters
Product number
parameter
JC-DB-02A
JC-DB- 0 3A
JC-DB- 0 4A
JC-DB- 0 6A
power supply
220V 50HZ
Maximum use temperature
400℃
Power (W)
1500W
2000W
3000W
3700W
Heating size
(mm)
300×200
400×280
450×350
600×400
Dimensions
(D×W×H)mm
200×300×220
280×400×220
350×450×220
400×600×220
Package dimensions
(D×W×H)mm
265×355×260
350×450×260
420×500×260
465×650×260
Net weight/gross weight KG
8/9
14/15
19/21
28.5/31
3. Product Features
1. Digital display stainless steel electric heating plate
2. All use closed heating, no open flame for heating.
3. Using thyristor stepless power regulation, it is suitable for different heating temperatures.
4. The shell adopts electrostatic spraying process, and the coating is firm and beautiful.
5. Using advanced electronic thyristor temperature control circuit, thermocouple temperature sensing, pointer table display temperature.
