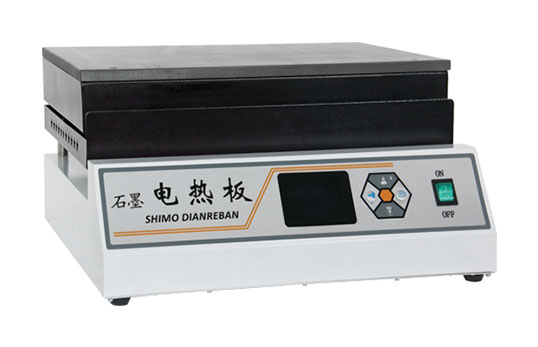

JC-DS series graphite heating plate
  • Product name:JC-DS series graphite heating plate
  • Order number:
  • Model:JC-DS
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    The graphite electric heating plate panel is made of high-purity graphite material with acid and alkali resistance and high temperature resistance, which is specially tailored for laboratories. Various series and three sizes are available for users to choose from. They are made with special craftsmanship to overcome the disadvantages of ordinary electric heating plates that are easily damaged due to long-term continuous operation.


    2 .Product parameters


    Product number

    JC-DS-02A

    JC-DS-03A

    JC-DS-04A

    JC-DS-06A

    power supply

    220V 50HZ

    Maximum use temperature

    420℃

    Power (W)

    1500W

    3000W

    2000W

    3700W

    Heating size (mm)

    300*200

    450*350

    400*280

    600*400

    Dimensions mm

    337*300*200

    490*450*220

    417*400*200

    541*600*200

    Package dimensions

    (D×W×H)mm

    445*380*305

    595*540*305

    515*490*305

    695*655*305

    Net weight/gross weight KG

    7/14

    15/23

    11/18

    22/32

    3. Product Features


    1. The heating product specially designed for the laboratory is beautiful in appearance, reasonable in design, convenient in operation, stable and durable.

    2. The thickness of graphite is 13mm, the heating area is large, and multiple samples can be processed at the same time, and the temperature of each heating point is uniform.

    3. The LCD screen of this product is used as a screen display and controller to independently develop an intelligent SR temperature control instrument to control the temperature, with fast heating speed and stable working temperature.

    4. PID digital display temperature control, can work continuously for more than 42 hours.

    5. The surface of the board is made of electrostatic high-pressure high-purity graphite material, which is resistant to acid and alkali, high temperature and easy to clean.
