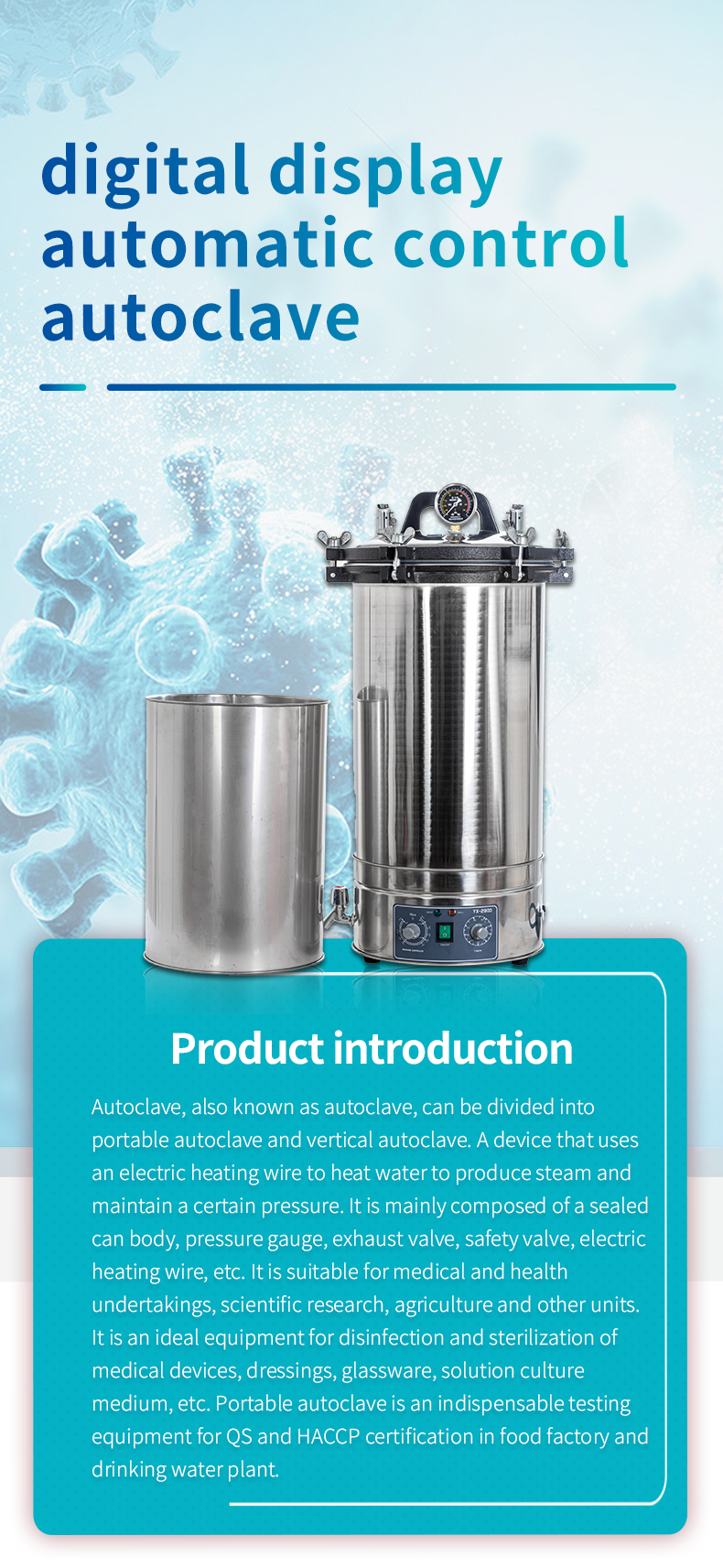

1. Product introduction

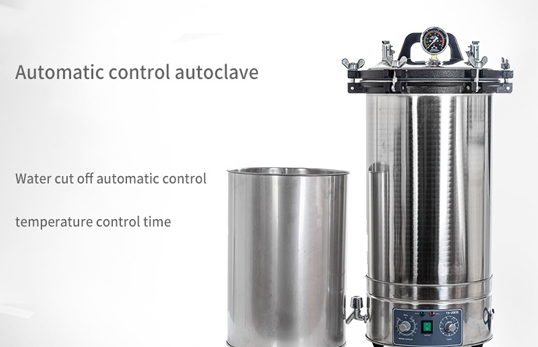

Autoclave, also known as high pressure steam sterilizer, can be divided into portable sterilizer and vertical autoclave. A device that uses electric heating wires to heat water to generate steam and maintain a certain pressure. It mainly consists of a sealable barrel, pressure gauge, exhaust valve, safety valve, electric heating wire, etc. It is an ideal equipment for disinfection and sterilization of medical equipment, dressings, glassware, solution culture medium, etc. Portable autoclave is an essential inspection equipment for food factories and drinking water factories to do QS and HACCP certification.

2. Product parameters

1. Sterilization volume: 18L/24L/30L

2. Working pressure: 0.165Mpa

3. Working temperature: 129℃

4. Overpressure self-release 0.145-0.165Mpa

5. The size of the disinfection inner cylinder: Φ280×243/h383/h423(mm)

6. Size of disinfection cylinder: Φ300*270/400/550 (MM)

7. Outer packing size: 40×40×53/64/70(cm)

8. All stainless steel (SUS304) materials are used

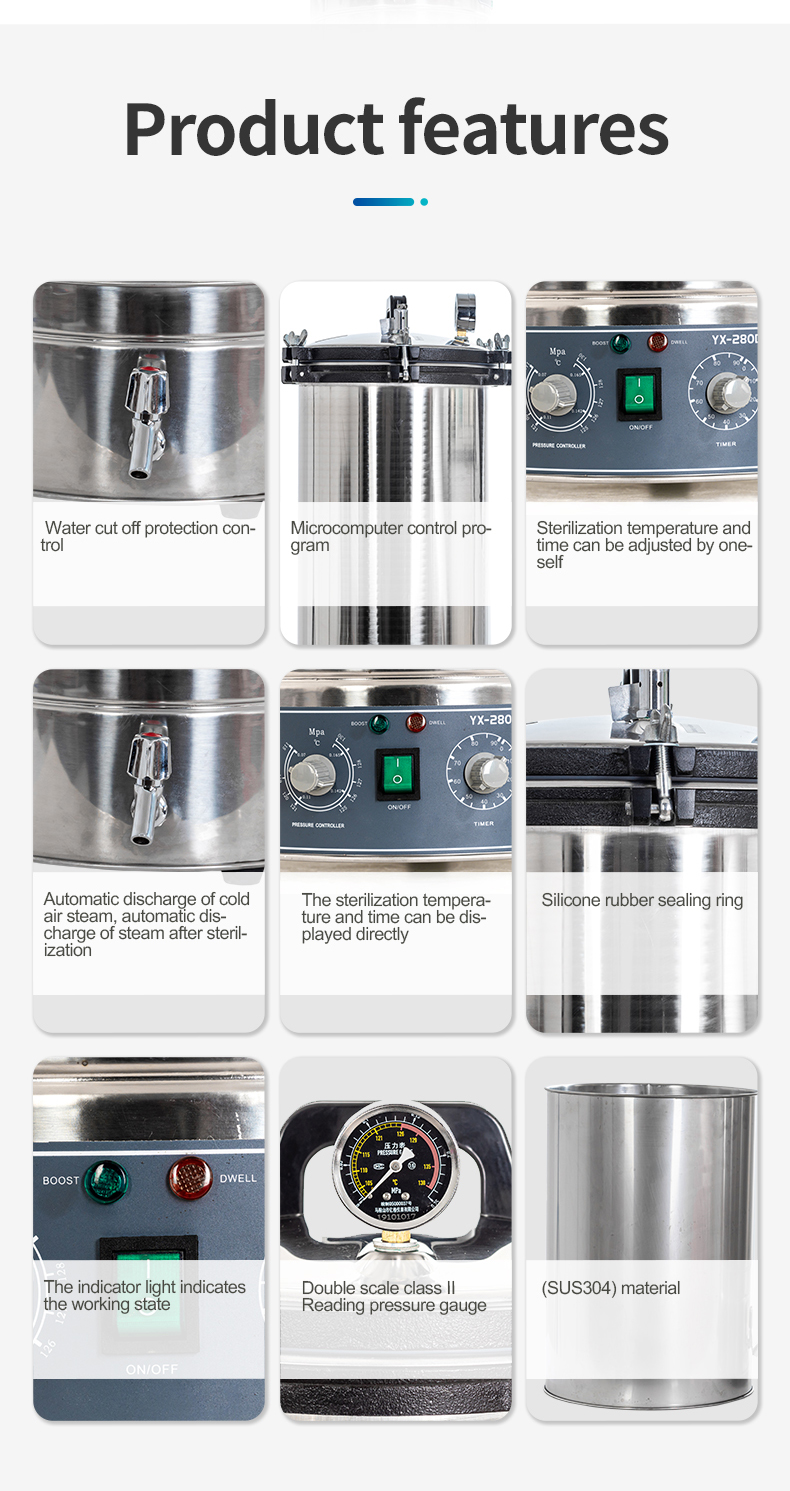

3. Product Features

1. Silicone rubber sealing ring

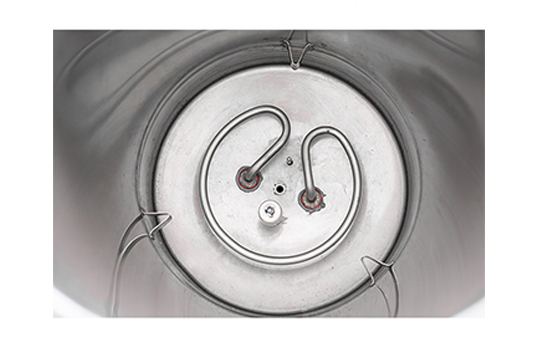

2. Immersion electric heating tube

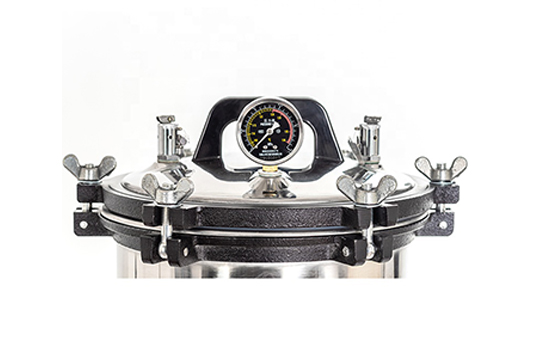

3. Double-scale second-class reading pressure gauge

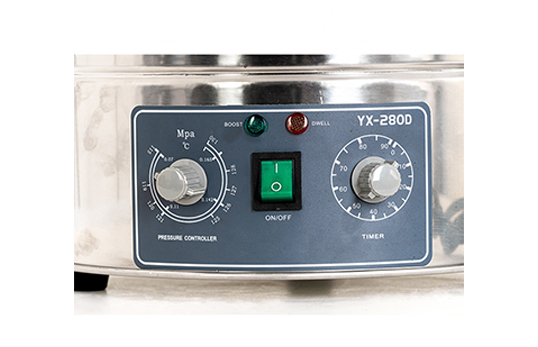

4. The sterilization time and temperature can be set, the function of preventing water and dry burning, and the buzzer reminds when the sterilization is over.

5. One-time calendering of container cover and container barrel
