Product name：JC-GD-20 Orbital Shaker -
Order number： -
Model：JC-GD-20 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction

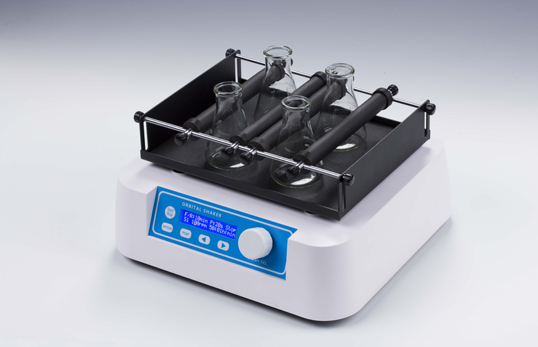

JC-GD-20 orbital shaker adopts DC brushless motor and microcomputer control technology. The unique knob operation mode is simple and easy to use. By changing different trays, it can mix and cultivate various common flasks, petri dishes and beakers.
2. Product parameters
project
parameter
time setting
1min ~ 99h59min
Forward and reverse function
support
Forward and reverse time setting
0-99min
Pause time
0-99sec
range of rotation
50 ～250Rpm
Amplitude
20mm
load capacity
2.5kg
Power
AC110V~240V 50/60Hz
input power
35W
Dimensions (mm)
350×320×130 (with T P-1 tray)
Weight ( kg )
8.2kg (with T P-1 tray)
Tray model
Sample size
Remark
TP -1
8 standard petri dishes
Universal tray
T P-2
4 x 250mL or 6 x 100mL flasks
adjustable tray
T P-3 ( 100ml )
12 x 100mL flasks
100mL Flask Tray
T P-3 ( 250ml )
6 x 250mL flasks
250mL flask tray
3. Product Features
1. LCD real-time display timing time and speed value;
2. With forward and reverse rotation and pause functions, it can run intermittently;
3. A variety of trays are available for a wide range of needs;
4. Soft start, uniform acceleration, effectively avoid sample splashing;
5. Driven by brushless DC motor, accurate speed, long life and maintenance-free.
