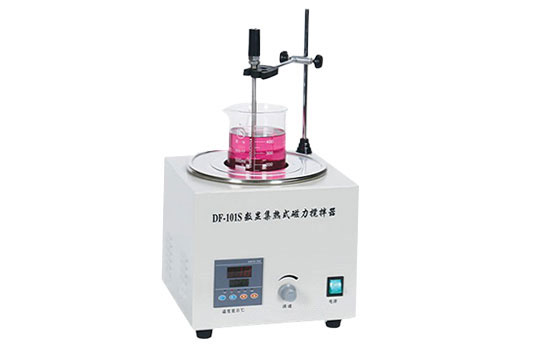

DF-101S collector magnetic heating stirrer
  • Product name:DF-101S collector magnetic heating stirrer
  • Order number:
  • Model:DF-101S
  • Stock status:Delivery according to contract
  • Logistics:by sea, by air, by express, etc.
  • Product Introduction
  • 1. Product introduction


    The collector-type constant-temperature heating magnetic stirrer adopts the collector-type heating method, and the heated container is completely exposed to strong thermal radiation, and the heating speed is three times that of other flat heating magnetic stirrers. The temperature is uniform and the efficiency is high, and it is more suitable for heating reaction in spherical flask. The collector magnetic heating stirrer is widely used in various colleges and universities and environmental protection units. The instrument has good performance, no noise, no vibration, and fast temperature rise. It is an ideal choice for experimenters.


    2. Product parameters


    model

    DF-101S

    Rotating speed

    Start-2000rpm (stepless speed regulation)

    stirring power

    40W

    heating power

    500W

    Temperature control range

    Room temperature-300℃

    power supply

    220V±10% 50Hz-60Hz


    3. Product Features


    1. The intelligent heat-collecting magnetic heating stirrer adopts a DC brushless motor, which has low noise, stable speed regulation, and long service life.
    2. The stainless steel liner is corrosion-resistant and easy to clean.
    3. The stirrer is made of polytetrafluoroethylene and high-quality carbon steel, which is resistant to high temperature, wear resistance, chemical corrosion, strong rotating force, and can be used for temperature adjustment in a closed container.
    4. The instrument is also equipped with an automatic constant temperature device, which makes chemical experiments a step closer to automation.
