Digital multi-point magnetic stirrer 05/10/15
  • Product name:Digital multi-point magnetic stirrer 05/10/15
  • Order number:
  • Model:
  • Stock status:
  • Logistics:
  • Product Introduction
  • 1. Product introduction

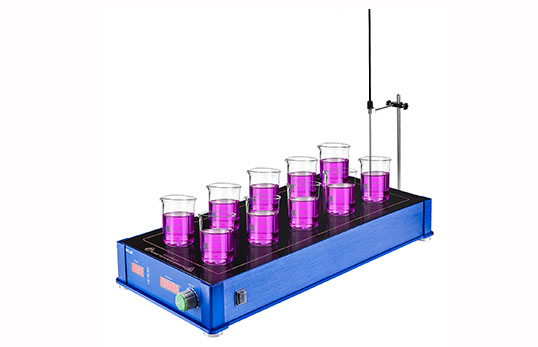

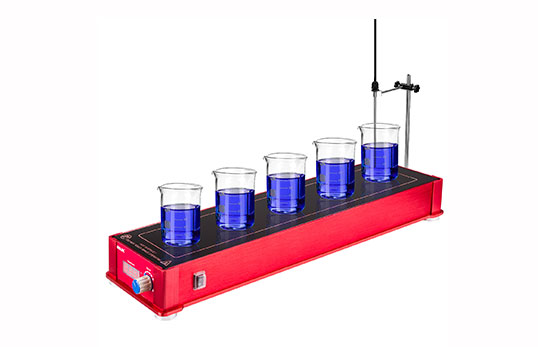

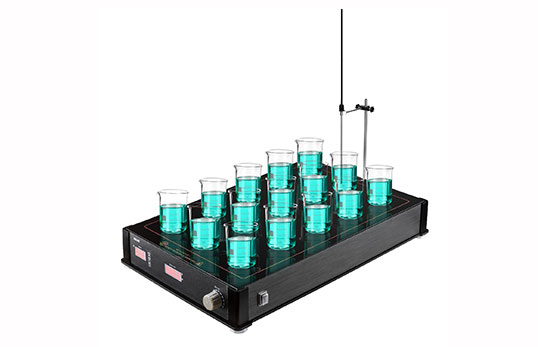

    Multi-point digital magnetic stirrer, with 5 working positions, 10 working positions and 15 working positions, with and without heating function, novel and beautiful design, easy operation, continuous adjustable stirring speed, The instrument runs smoothly and quietly. The temperature of the heating plate can be set arbitrarily from room temperature to 200 °C, and the sample temperature can be heated to 100 °C. The heating module adopts nano-thermal energy technology, which has fast heating, large heating area and uniform heating; it is suitable for large-scale sample screening, culture, sample concentration, solvent evaporation and other experiments; it is widely used in scientific research, petroleum, chemical industry, environmental protection and other fields. It is a good helper in experiments such as middle schools and scientific research units;
    2. Product parameters

    model

    Type 05 / Type 05H

    Type 10 / Type 10H

    Type 15 / Type 15H

    Voltage (VAC)

    220V / 110V

    220V / 110V

    220V / 110V

    frequency

    50/60Hz

    50/60Hz

    50/60Hz

    Rotating speed

    0rpm,100~1100rpm

    temperature range

    -- / Plate temperature: Ambient ~200, Sample temperature: Ambient ~120

    Stirring amount

    2.5L

    5L

    7.5L

    capacity

    500ml

    Standard Stirrer Size

    Φ12×35mm

    working surface size

    140×540mm

    240×540mm

    340×540mm

    work panel material

    Microcrystalline ceramics

    Number of stirring positions

    5

    10

    15

    Stirring point spacing

    90mm

    Stirrer length

    40mm

    power

    -- / 300W

    -- / 600W

    -- / 800W

    Motor input power

    7.2W

    14W

    30W

    Motor output power

    1.8W

    4W

    6W

    ambient temperature

    5~40

    environment humidity

    <90%

    weight

    4.2kg

    6.7kg

    7.2kg

    Dimensions

    160×560×80mm

    260×560×80mm

    360×560×80mm


    3. Product Features
    1. The heating module adopts nano thermal energy technology, no mechanical heating components, dry burning, no electromagnetic field interference and harm, large heating area, uniform heating, and rapid temperature rise;
    2. It can be used for 1~500ml standard or non-standard Containers of various shapes and sizes are used for heating and stirring;
    3. DC motor is used, with stable performance, low noise, long life, stable low speed and strong high speed;
    4. The body is made of oxidized aluminum alloy, and the appearance design is novel and beautiful;
    5. The work panel adopts German-microcrystalline ceramics, acid resistance, alkali resistance, high temperature resistance, easy to clean;
