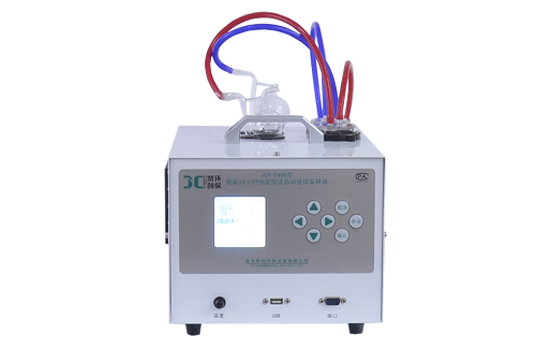

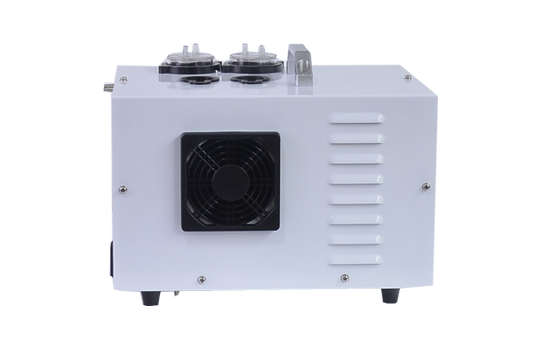

Product name：JCH-2400-2 type two-way constant temperature automatic continuous sampler -
Order number： -
Model：JCH-2400-2 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
JCH-2400 dual-channel constant temperature and constant current automatic continuous sampler (hereinafter referred to as the sampler) is mainly used to collect gaseous and vaporous SO2, NOx, etc. in the air. The product has stable performance, convenient operation, and has been greatly improved in terms of small portability and flow stability, which greatly reduces labor intensity. The sampler uses the solution absorption method to collect various harmful gases in the ambient atmosphere and indoor air. It can be used for routine and emergency monitoring of gaseous substances and aerosols inenvironmental protection, health, labor, safety supervision, military, scientific research, education, testing companies.
2. Product parameters
The main parameters
parameter range
Resolution
Accuracy
*Sampling flow
(0.1～1.0)L/min
Can be customized 0.1-2L/min
0.001L/min
Not more than ±2%
*24 hours sampling flow
0.18~0.22L/min, constant current at 0.2L/min
Not more than ±2%
delay time
1min～99h59min
1min
Not more than ±0.2%
sampling time
1min～99h59min
1min
Not more than ±0.2%
Intervals
1min～99h59min
1min
Not more than ±0.2%
Equally spaced sampling times
1 to 99 times
Intervals
<99h59min
Sampling volume
9999.99L
pre-gauge pressure
(-20～0) Kpa
0.01Kpa
Not more than ±2.5%
atmospheric pressure
(70～130) Kpa
0.1Kpa
Not more than ±2.5%
Temperature control range
(15～30)℃
0.1℃
Not more than ±1.5℃
Operating temperature
(-30～+50) ℃
0.1℃
not more than ±1℃
Working power
AC220V±10% 50Hz
*Built-in lithium battery
11.1V 5.2AH
continuous working time
>30h
noise
<55dB(A)
Power consumption
<20W
Dimensions
240mm×200mm×140mm
Total Weight
about 3kg
3. Product Features
1. Sampling two-way design, flexible sampling method, can collect two kinds of gas or parallel samples, and can be controlled separately.2. The electronic flow meter automatically and accurately controls the flow, the flow has no fluctuation, and the constant current sampling.
3. The use of high-performance ultra-bass imported diaphragm pump greatly improves stability, long service life and ultra-low noise.
4. The use of high-efficiency anti-suction dryer design can effectively prevent the absorption liquid from being sucked back due to misoperation, and enhance the safety of the instrument.
5. Use high-quality dust filter elements to achieve particle filtering function, prevent entering the gas path to interfere with sampling, and protect the sampling pump and gas path at the same time.
6. Real-time monitoring of gauge pressure and temperature, automatic compensation of flow deviation, and further optimization of flow accuracy.
7. Built-in automatic constant temperature device, the constant temperature time is fast, and it can be used in cold and hot areas;
8. The Chinese LCD screen with automatic contrast adjustment is suitable for sampling in cold areas, and the popular software display interface realizes good human-computer interaction.
9. Automatically calculate the cumulative sampling volume, and at the same time convert the standard sampling volume according to air pressure and temperature.
10. Atmospheric pressure can be input and measured, suitable for use in low pressure environments.
11. Sampling data can be stored and printed.
12. The instrument automatically monitors the power supply status of the system, automatically saves the working data, and can resume sampling after a call.
13. Equipped with a professional measurement certificate issued by the Metrology Institute.
