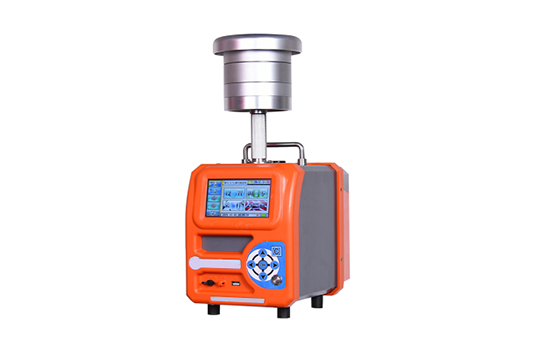

Product name：JCH-6130 Comprehensive Atmosphere/Fume/VOCs Sampler -
Order number： -
Model：JCH-6130 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
Product introduction
This instrument can sample toxic and harmful gases, volatile organic compounds, and particulate matter in the atmosphere or exhaust gas, and is suitable for environmental protection, health, labor, safety supervision, military, scientific research and other departments.
Technical Features
AC and DC dual-use, built-in lithium battery, continuous power supply for more than 5 hours when five channels work at the same time;
The instrument integrates two channels of atmospheric /flue gas, two channels of VOCs, and one channel of particulate matter sampling, and each channel is individually controlled;
Semiconductor refrigeration technology, no pollution, high refrigeration efficiency;
Atmospheric sampling has the function of constant temperature automatic heating and cooling, and the cooling temperature (15~30) ℃ is adjustable;
Imported brushless sampling pump with long life and high reliability;
Delay/instant time, sampling time, interval time, cycle times, etc. can be set;
Automatic calculation of working condition volume, standard condition volume and reference volume, which can be sampled at regular intervals and at intervals respectively;
Electronic flow sensor, constant current sampling, automatic compensation for flow changes caused by voltage fluctuations and resistance changes;
Air line color identification design, easy and accurate connection of air lines;
Equipped with a drying cylinder with anti-suckback function;
Power-off protection function, automatically resume sampling when power is off and then power on;
Large-size 5.0-inch color touch display, touch screen operation and key operation can be linked;
Bluetooth communication interface, optional external wireless thermal printer, convenient for data output and printing;
Optional heating sampling tube, automatic constant temperature control of sampling tube, digital display of temperature;
TSP/PM10/PM2.5 sampling head is made of aluminum alloy material, anti-static adsorption;
Optional SVOCS sampling tank
Equipped with a height-adjustable tripod.
technical parameter
The main parameters
parameter range
Resolution
Accuracy
Atmospheric/Fume Sampling Flow (Dual)
(0.2 ～ 2.0) L / min
0.01L / min
Better than ±2.5%
VOCs sampling flow (two channels)
(10～200)mL/min
0.1mL/min
Better than ±2.5%
TSP sampling flow
(10 ～ 130) L / min
0.1L/min
Better than ±2.5%
Traffic Volatility
Better than ±2.0%
flow repeatability
Better than ±2.0%
sampling time
Arbitrary settings within 99 hours and 59 minutes
0.1 min
Better than ±0.2%
pre-gauge pressure
(-30～0)kPa
0.01 kPa
better than ± 2.5%
atmospheric pressure
(60～130)kPa
0.01 kPa
Not more than ±500Pa
interval sampling time
Arbitrary settings within 99 hours and 59 minutes
Number of samples
1 to 99 times
Constant temperature sampling temperature control range
(15～30) ℃
Operating temperature
(-30～+50)℃
Host size (L×W×H)
387mm×185mm×225mm
Instrument noise
≤55 dB(A)
Working power
AC(220±22)V 50Hz or built-in lithium battery
weight
≤5kg _
Power consumption
＜200W
