1. Product introduction

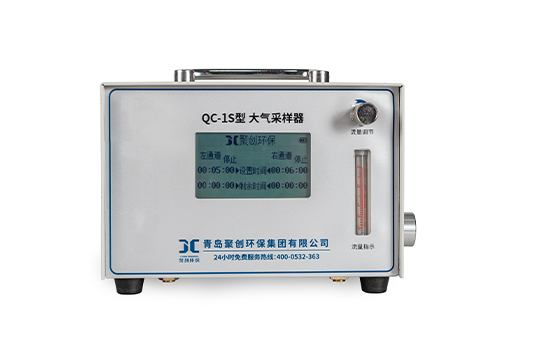

QC-1S single gas path atmospheric sampler is an instrument for sampling a harmful gas in the air. It is suitable for the collection of various harmful gases in the air in environmental monitoring, health and epidemic prevention, occupational disease prevention, industrial and mining harmful gas collection, room environment measurement, college teaching, research and other units. The instrument is completed by two air pumps alone. It can collect samples of two different harmful gases at the same time, and can also collect balance samples and two samples at different times. It has the advantages of small size, light weight, simple operation, accurate timing, convenient use, large suction negative pressure, needle valve mechanical adjustment for regulating valve, fine adjustment scale and good stability. 's praise.

Executive standard: Q/0213 QJC013-2020 "Dual-channel atmospheric sampling"

2. Product parameters

2.1 Set the sampling time arbitrarily.

2.2 The automatic locking function can effectively prevent misoperation.

2.3 Equipped with a pause function, which can be stopped and resumed at any time , and equipped with an anti-suckback function .

2.4 Low battery reminder function. It can still be sampled when the battery is too low.

3. Technical parameters

3.1 Working voltage: DC11.2V (lithium battery) AC220V±10V 50Hz

3.2 Flow range: (0～3)L/min /0-1.5L/min /0.-1.2L/min (optional)

3.3 Negative suction pressure: >35000Pa

3.4 Flow Accuracy: ±5%

3.5 Stability: ≤5%

3.6 Timing accuracy: ±0.1%

3.7 Working noise: ≦65dB

3.8 Ambient temperature: -5～40℃

3.9 Relative humidity: ≦95%

3.10 Charging current: 1A

3.11 Continuous working time: more than 8 hours

3.12 Dimensions: (205×135×115) mm3

3.13 Instrument weight: 2.3kg

4. Product Features

1. Large LCD screen, clear data, easy to operate.

2. Automatic locking function, effectively prevent misoperation.

3. In the setting interface, the font can be enlarged for easy operation.

4. Equipped with a pause function, which can be stopped and resumed at any time, and is equipped with an anti-suckback function.

5. Low battery reminder function. It can still be sampled when the battery is too low.

6. When the sampling is over, the screen backlight will automatically turn on and prompt.

7. The single-channel design can collect one channel of gas.

8. The display screen automatically adjusts the contrast and brightness, which is suitable for use in a variety of complex lighting environments.

9. The instrument is small in size, light in weight, easy to operate, accurate in timing, and has a large negative pressure for exhausting.
