1. Product introduction

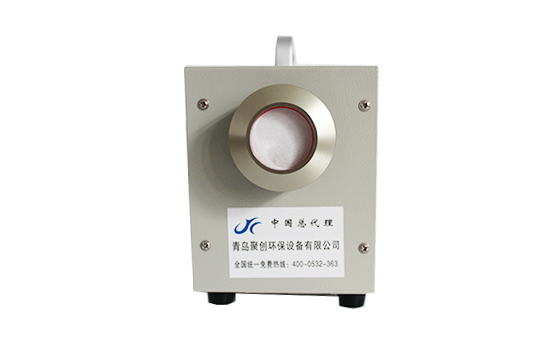

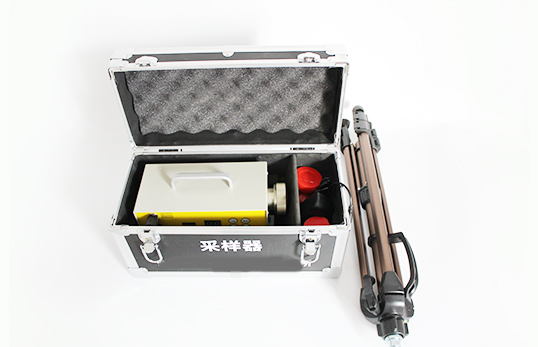

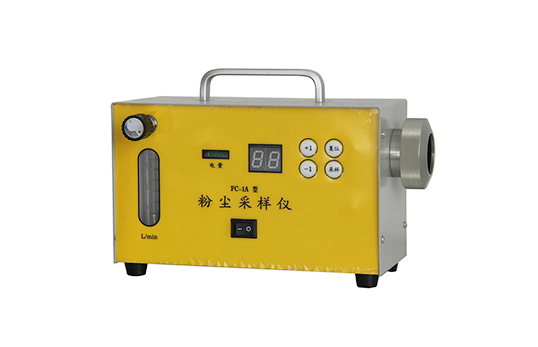

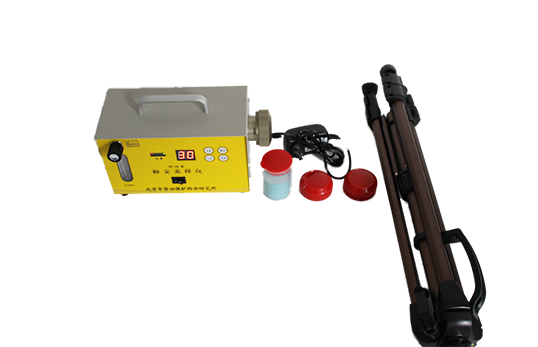

FC-1A single gas path dust samplerEquipped with air capacity, air resistance, buffer and other flow stabilizing devices to ensure that the system has high negative pressure and stable airflow. It is more suitable for collecting special dust with special filter material than general sampler.

2. Product parameters

1. Flow range: 5-30L/min

2. Negative suction pressure: >2500Pa

3. Flow stability ≤5% fluctuation

4. Flow meter accuracy: Class 2.5

5. Continuously adjustable timing : 1 ~ 99 min error ≤ 0.1%

6. Rechargeable battery, both AC and DC, can work continuously for more than 3hr

7. Size: 230*135*110mm

8. Weight: 4Kg

3. Product Features

The instrument realizes the integration of sampling, power supply and charging, making it more convenient to use.
