Product name：GFC-5 Individual Dust Sampler -
Order number： -
Model： -
Stock status： -
Logistics：
- Product Introduction
-
1. Product introduction

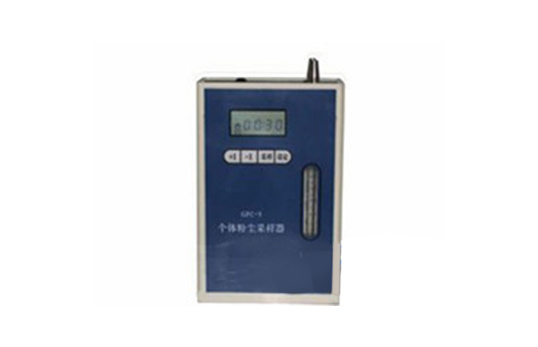

GFC-5 individual dust sampler is specially developed and developed according to the standard of "GBZ/T 192 Determination of Dust in Workplace Air", which is used for long-term or individual sampling, and is used for 1L-5L/min flow filter membrane Sampling clip for total dust, respiratory dust, metal dust sampling. Features: high-performance air pump, strong load capacity, accurate large flow, long working time, small size and light weight.
2. Product parameters
1. Load capacity: ≥5.0L/min (1000 Pa negative pressure)
2. Flow range: 1.0～5.0L/min
3. Flow stability: ≤5% within 8 hours
4. Flow error: ≤± 5%
5. Timing range: 0～24hr59 min, error ≤0.1%
6. Continuous working time: ≥8 hr
7. Working temperature: 0～40℃
8. Dimensions: 100*52*152mm
9. Host weight: 500 g
sampling methodSubstance to be tested
in accordance with
sampling method
Required Sampling Accessories
total dust
GBZ/T 192.1
individual
or long time
Φ37 Plastic sampling clip
Φ37 filter membrane
Respirable Dust
GBZ/T 192.2
individual
or long time
Φ30 respirable dust sampling head (including
pre-separator)
Φ30 filter membrane
heavy metal
and its compounds
GBZ/T 160
individual
or long time
Φ25 Small plastic sampling clip
Φ25 mixed fiber membrane
