1. Product introduction:

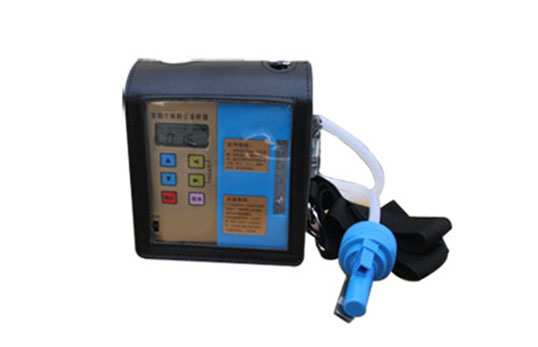

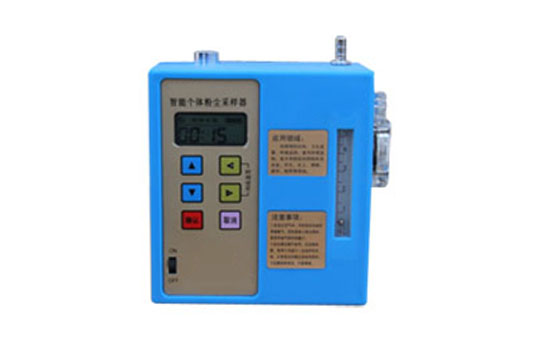

TY-08C intelligent individual dust sampler is a new automatic air sampler with microcomputer startup, shutdown and countdown control on the basis of the original manual control. The instrument case is made of high-strength ABS colored engineering plastics.
The instrument is widely used in environmental health monitoring, occupational health monitoring, indoor environment, scientific research and other new instruments for collecting toxic substances samples. The instrument adopts built-in high-energy lithium rechargeable battery, the continuous running time can be up to 8 hours at one time, easy to operate, high timing accuracy, sturdy and durable, AC and DC compatible, convenient and fast time selection, the countdown range of 1 ~ 99 hours and 59 minutes can be selected arbitrarily , the power is automatically turned off when the machine is stopped. It is currently the most practical individual dust sampler.

2. Product parameters:

1. Flow range (optional): 0.1~3L/min, 1~5L/min
2. Sampling range: total dust and respirable dust
3. Flow error: ≤5%
4. Flow meter accuracy: 2.5 class
5. Sampling time: >8 hours
6. Timing range: arbitrarily set within 99 hours and 59 minutes
7. Timing error: ≤1‰
8. Large negative pressure: ≥35000pa
9. Working temperature: -25～45℃
10 , Storage temperature: -40℃～+60℃
11. Ambient atmospheric pressure: 80KPa~110Kpa
12. Noise: ≤55dB
13. Relative humidity: ≤85%
14. The control button allows to suspend sampling during rest or other situations
15. Anti-fall Suction: It can prevent liquids and particles from being sucked back into the instrument, thereby extending the service life of the instrument.
16. Power supply: 7.4VDC, 220V50HzAC
17. Charging current: 300mA (standard type)
18. Volume: 100*50*110mm
