1. Product introduction

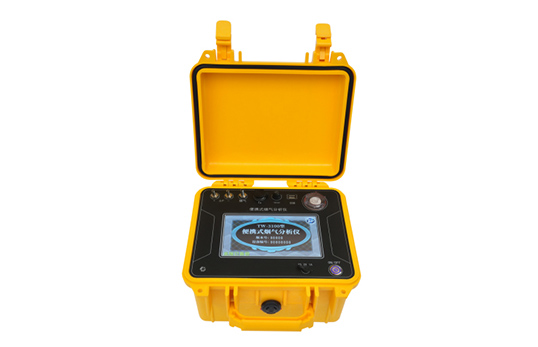

JCY-80B(X) portable flue gas analyzer mainly adopts the most advanced NDIR non-spectroscopic infrared and electrochemical technology, which can be used to directly measure O2, CO, SO2, NO, NO2, H2S, CO2, CL2 in flue gas , CH4 and other gas concentrations. Equipped with an integrated working condition measuring gun, it can simultaneously measure parameters such as flue gas temperature, pressure and flow rate. The product adopts a large touch color screen design, which has the advantages of high precision, small size, easy portability, simple operation and good human-computer interaction interface. Combustion research and many other fields.

2. Technical characteristics

◆ Adopt internationally advanced NDIR non-spectroscopic infrared and electrochemical gas analysis technology with independent intellectual property rights;

◆ Unique suppression of multi-gas coexistence cross-interference technology to ensure accurate test results;

◆ Wide measurement range, suitable for flue gas testing of all coal-fired, oil-fired and gas-fired boilers;

◆ AC and DC power supply, built-in rechargeable lithium battery, the battery can be continuously powered for more than 20 hours when fully charged; ◆ It can measure the volume concentration
of O2, CO, SO2, NO, NO2, H2S, CO2, CL2, CH4 and other gases in flue gas ;

◆ The manual and automatic sampling mode can be switched at any time, and the average data and overall data can be viewed in the automatic sampling mode.

◆ Switch the display between ppm and mg/m 3 anytime and anywhere , and print and export the data of the corresponding unit under the condition of switching units;
◆ Soft-start power switch, intelligent management of battery power, to avoid the instrument working under low battery conditions;
◆ Seven-inch color touch Resistive screen, professional interface design layout, more beautiful and user-friendly and easy to use;
◆ With automatic data storage, query, deletion, export and other functions;

◆ The data storage capacity is more than 10,000 groups;
◆ With the Bluetooth printing module U disk export interface, the data can be printed and exported continuously;
◆ The built-in imported high negative pressure flue gas sampling pump, constant current sampling, eliminates the influence of negative pressure on the test results ;

◆ Optional high-efficiency dehumidification and dust removal flue gas pretreatment system to completely eliminate the influence of dust and water vapor on gas measurement, especially suitable for low-sulfur flue gas measurement;

◆ It has the function of automatic drainage. When the automatic measurement ends or when the manual measurement and flue gas cleaning are performed for a long time, the drainage pump will be automatically turned on to clear the accumulated water inside the instrument due to water vapor, which increases the reliability of the instrument.

◆ The host is dust-proof and waterproof, small in size, light in weight, and easy to carry.
