1. Product introduction

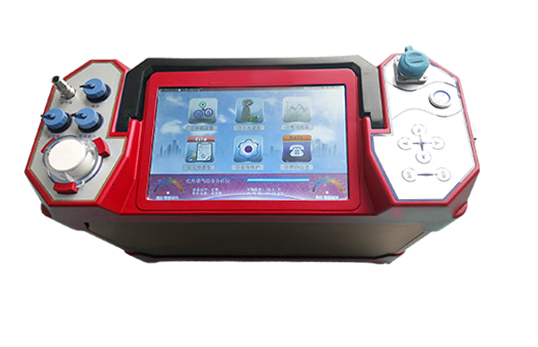

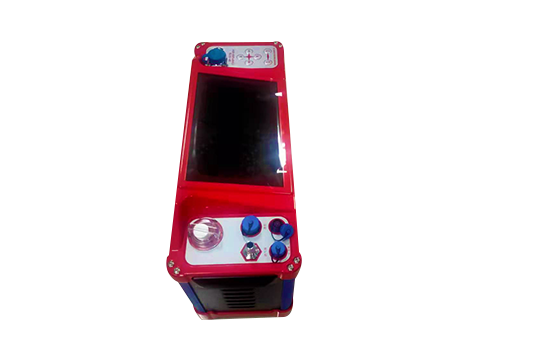

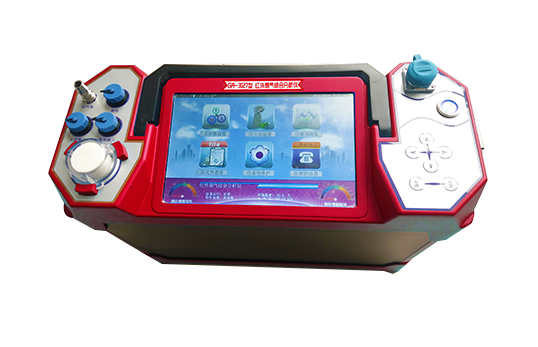

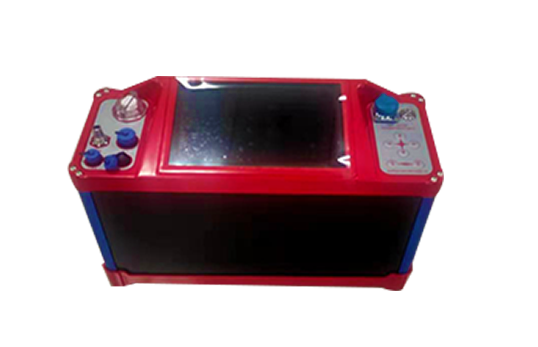

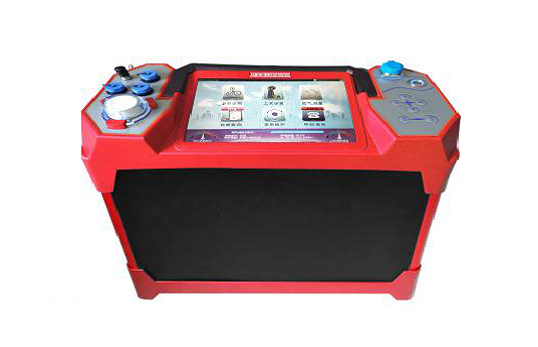

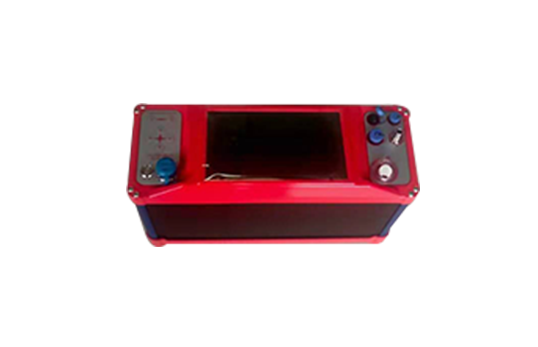

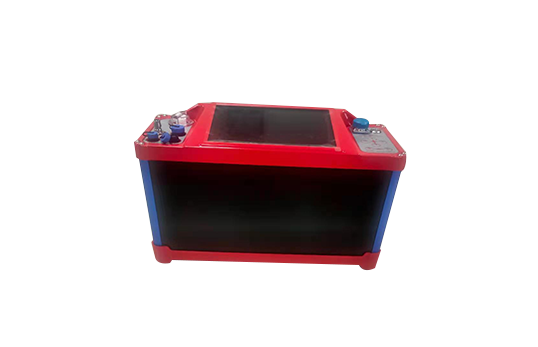

JCY-80H infrared flue gas comprehensive analyzer (hereinafter referred to as the analyzer) is a high-precision flue gas analyzer with non-dispersive infrared absorption method (NDIR) as the core. The instrument is mainly used for harmful gases in the emission pipeline of pollution sources. Composition measurement, widely used in environmental monitoring and thermal parameter measurement and other departments. The analyzer is used to measure the concentration of O2, SO2, NOx, CO, CO2 and other harmful gases, among which SO2, NO, CO2 are analyzed and measured by non-dispersive infrared technology; the analyzer has high measurement accuracy, strong reliability, and response time. Fast, long service life and other advantages.
Scope
of application : Determination of emission concentration, converted concentration and total emission of SO2, NOx, CO and other harmful gases in various boilers and industrial furnaces.
Flue exhaust parameters: determination of dynamic pressure, static pressure, smoke temperature, flow velocity, standard dry flow, etc.
Determination of flue gas oxygen content and air excess coefficient.
 Evaluation and calibration of the measurement accuracy of continuous flue gas measurement instruments.

2. Product parameters

3. Product Features

1. Using the measurement principle of non-dispersive infrared absorption method, it can measure various flue gas components of SO2, NOx, CO2, CO, H2S, O2 at the same time;
2. The core components have independent intellectual property rights, and the measurement system has dehumidification and dust removal. , constant temperature control, shock
absorption device and other measures to effectively protect the instrument, improve the scope of application of the instrument and the accuracy of data measurement; work efficiency.
4. For the measurement of high humidity conditions, a secondary flue gas pretreatment system combined with semiconductor and membrane water removal can be selected. The loss of water solubility of the flue gas is small, the water removal is cleaner, and the measurement data is more accurate.
5. Built-in flue gas humidity measurement sensor, stop working when the flue gas humidity is too high to protect the instrument from moisture damage.
6. 10.1 inch bright color touch screen, beautiful interface, easy to operate, compatible with touch screen and key operation
7. Built-in lithium battery, battery working time is more than 4 hours.
8. AC and DC dual-purpose: AC input 80-264V, strong on-site adaptability, especially for industrial sites with high electromagnetic interference; DC wide-voltage input, input voltage 12-26V, with under-voltage, over-voltage, reverse connection protection functions, effective Protect the instrument from damage.
9. The whole machine adopts electromagnetic compatibility and electrostatic protection design, which can effectively resist on-site static electricity and electromagnetic interference.
10. Large-capacity memory is used to store minute data and total average data in real time, and measurement data can be exported through U disk.
11. Real-time query detection data, standard Bluetooth printer, on-site printing.
12. Optional IoT module to realize remote data transmission and IoT networking.
