1. Product overview

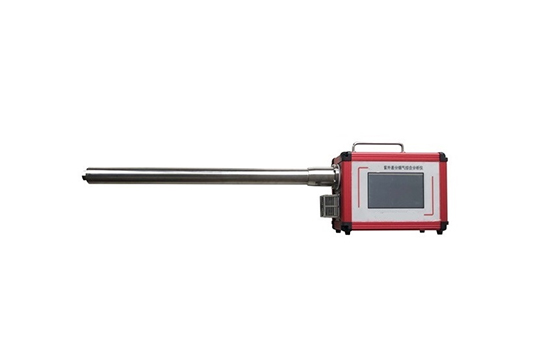

JCY-80X UV differential flue gas analyzer takes UV differential absorption spectroscopy ( DOAS ) as the core, and is used to measure SO2 , NO , NO2 , NH3 , O2 (electrochemical method), CO (electrical The new optical analysis instrument for chemical method or infrared), CO2 (infrared method) and other component concentrations, the core of the instrument adopts imported optical components, which has the characteristics of high measurement accuracy, high reliability and fast response time.

2. Main Features

1. The whole process of heat and humidity heating: the filter element and the air chamber are heated throughout the whole process, and the flue gas is extracted from the flue, filtered by the secondary filter element, and then enters the optical detection air chamber. Negative interference caused by moisture to gas dissolution and absorption and pipeline adsorption.

2. Integrated design of the whole machine: the measurement process does not require cumbersome connecting pipe wiring, which is truly portable and practical.

3. Barrel aerogel thermal insulation technology: Using the good thermal insulation effect of aerogel, the temperature outside the barrel is guaranteed to be in a state that the human body can touch, effectively preventing high-temperature scalding and isolating the impact of high-temperature flue heat on the air chamber, so that the The air chamber is always maintained at a constant temperature, and the measurement results are more accurate. This method is more stable than vacuum insulation.

4. Multi-stage buffering and shock absorption: The air chamber, optical fiber, and optical analysis core components adopt multi-stage buffering and shock absorption technology, which avoids the influence of mechanical vibration on the optical path and improves the reliability and stability of the instrument.

5. High-efficiency filter device: The front end of the bong is equipped with a high-efficiency filter, which can effectively prevent lens pollution and greatly prolong the maintenance cycle of the instrument.

6. Large-screen color LCD display interface: 7 -inch color screen crystal display, touch screen operation, easy to use.

7. Bluetooth printing: Standard Bluetooth printer, real-time printing or average printing of field data.

3. Technical parameters
