PRODUCTS CENTER
-
Product name：JCH-120S (new national standard) fluoride sampler -
Order number： -
Model：JCH-120S -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction

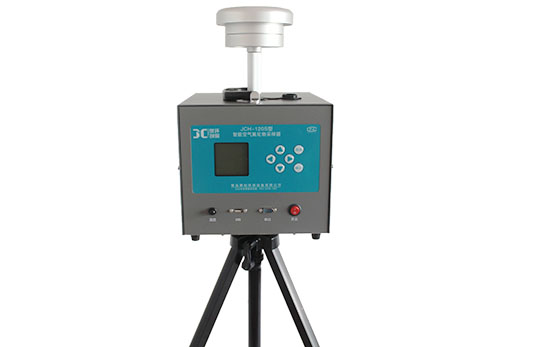

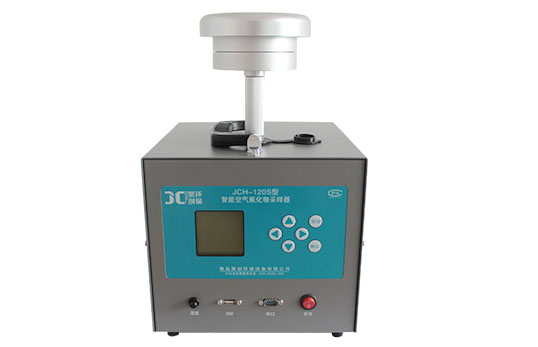

The JCH-120S intelligent air fluoride sampler (hereinafter referred to as the sampler) is an essential sampler suitable for collecting heavy metal particles (TSP) and fluoride samples in the atmosphere. The instrument adopts G new technology in the fields of sensors, new materials, etc., with reliable quality, stable performance and long service life. Membrane weighing method is used to capture heavy metal particles (TSP) in the ambient atmosphere and fluoride in the air. It can be used for routine and emergency monitoring of gaseous substances and aerosols in environmental protection, health, labor, safety supervision, military, scientific research, education and other departments.
2. Product parameters
The main parameters
parameter range
Resolution
Accuracy
Sampling flow
(10～100)L/min
0.1L/min
Better than ±2.5%
Flow stability
Better than ±2.0%
flow repeatability
Better than ±2.0%
sampling time
1min～99h59min
1min
Not more than ±0.2%
pre-gauge pressure
(-20～0)kPa
0.01kPa
Better than ±2.5%
ambient atmospheric pressure
(70～130)kPa
0.01kPa
Better than ±2.5%
timed start
24 hour clock
Equally spaced sampling time
Arbitrary settings within 99 hours and 59 minutes
Equally spaced sampling times
1 to 99 times
noise
<59dB(A)
Overall size (W×D×H)mm
260×280×350
weight
Approx. 8.0 kg
power supply
AC220V±10% 50HZ
Power consumption
<350W
3. Product Features
1. The brushless high negative pressure sampling pump can overcome the resistance of 20kPa under the flow rate of 50L/min;
2. Electronic flowmeter, constant current sampling;
3. With a real-time clock, timing sampling can be set, and multiple sampling intervals are available;
4. Fluoride sampling head made of special aluminum alloy material, antistatic adsorption;
5. Automatically measure temperature and air pressure, and automatically calculate the sampling volume under standard conditions;
6. Small size, light weight, easy to carry;
7. Large-size Chinese dot-matrix LCD screen, automatically adjust the contrast, and can work normally at minus 30 degrees;
8. Power-down protection function, automatic sampling of incoming calls;
9. Optional TSP/PM10/PM2.5/PM5 sampling head for air heavy metal and particulate matter sampling;
10. A set of sample storage device is optional, which is convenient for sample collection and storage.
11. Optional JCD-1500 (upgrade) mobile power supply can work normally without AC power.
