Product name：JCY-3039 exhaust gas hydrogen chloride sampler -
Order number： -
Model：JCY-3039 -
Stock status： -
Logistics：
- Product Introduction
-
1. Product introduction

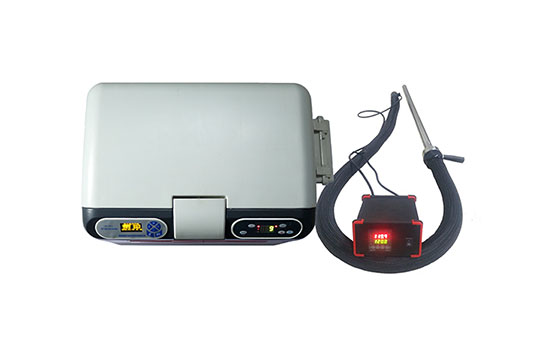

JCY-3039 exhaust gas hydrogen chloride sampler (hereinafter referred to as the sampler) is a special sampler developed by our company for sampling exhaust gas hydrogen chloride in fixed pollution sources. The product consists of a sampling pump, a flow control unit, a heating sampling tube, a filter membrane jacket, a heating temperature control device, a constant temperature condensing device and other functional bodies. The design is compact, lightweight and portable. Widely used in environmental protection, health, labor, safety supervision, military, scientific research, education and other departments.
The scope of application is applicable to the sampling of waste gas hydrogen chloride in stationary pollution sources. It can be used by environmental protection, health, labor, security, military, scientific research, education and other departments.
2. Product parameters
The main parameters
project
parameter range
Accuracy
Sampling part
flow
(0.10-1.00) L/min
2.5%
load capacity
>20kPa
data storage
1000 groups
Operating temperature
(-20-+50) ℃
Total Weight
About 8.0kg
Dimensions (mm)
400mm×280mm×290mm
Machine power consumption
<80W
sampling tube
Effective length
1.0 m
Heated Hose
2.0 m
Core tube material
PTFE
temperature setting
(60～160)℃
not more than ±2℃
filter section
filter holder
PTFE
filter membrane
Φ47
temperature setting
130℃
not more than ±10℃
constant temperature cooling
Absorption bottle
75ml/piece
Absorption bottle hole
6
Temperature control method
Condensing bath: ambient temperature <35℃, 0℃～35℃
Air bath: same as atmospheric temperature
Hot air bath: the maximum can be heated to 60 ℃, suitable for cold environment
3. Product Features
1. The whole set of equipment is a combined design: the sampler, heating sampling tube, membrane jacket, heating temperature control device, constant temperature condensation device, absorption bottle, dryer and other functional bodies are organically combined, with a compact structure, light and portable. ;
2. The inner tube of the sampling tube is made of anti-adsorption PTFE material, and the whole process is heated;
3. The filter membrane jacket and filter membrane trawl are made of PTFE material;
4. The filter membrane jacket has a heating function, which can The hydrogen chloride in the aerosol is collected after gasification to reduce sampling loss;
5. The connecting pipe between the filter membrane jacket and the absorption bottle adopts an anti-adsorption fluororesin insulation tube, which effectively prevents condensation and adsorption of the measured gas before entering the absorption bottle;
6. Sampling The tube adopts PID high-precision thermostat, and the control accuracy is better than 2 ℃;
7. The working space of the absorption bottle has three modes: condensation bath/air bath/hot air bath, which is suitable for various working conditions such as high temperature, normal temperature and severe cold in China. The temperature control range is 0~60 degrees;
8. A maximum of 6 absorption bottles can be placed in the constant temperature condensation box, and both the sampling absorption bottle and the blank sample absorption bottle can be placed in the temperature control box;
9. The cellulose acetate microporous filter is used . Membrane, which can effectively remove the interference of particulate chloride on the measurement results.
