1. Product overview

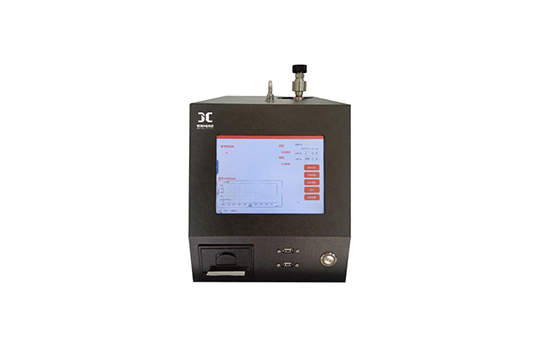

JC-T60 adopts FID technology, which can measure total hydrocarbons and methane in ambient air and waste gas from stationary pollution sources. It can automatically and continuously sample, continuously monitor, and respond quickly. The sampling system and analysis system are kept in a controlled high temperature state throughout the whole process, which can effectively prevent sample condensation or loss, and realize the monitoring of total hydrocarbons/methane/non-methane total hydrocarbons.

2. the method principle

After the sample is introduced into the portable non-methane total hydrocarbon analyzer, it should be able to quantitatively inject into the total hydrocarbon detection unit and the methane detection unit at the same time (separated by the chromatographic column and then enter the FID detection), and simultaneously measure the content of total hydrocarbons and methane. The difference between the two is is the content of non-methane total hydrocarbons.

3. product features

1. The instrument is easy to operate, intelligent, and equipped with special software.

2. The instrument is equipped with WI-FI communication.

3. Highly sensitive and wide-range hydrogen flame ionization detector, with a linear range of up to 10 7 .

4. The gas circuit adopts EPC control, and the control precision reaches 0.01Psi.

5. Integrated sampling system, heat tracing throughout the process to prevent sample condensation and ensure accurate and reliable measurement.

6. Equipped with solid metal hydride hydrogen storage.

7. The new brushless diaphragm pump is selected, which has low power consumption and low noise.

8. Real-time collection and monitoring, historical data query, print and upload.

9. The instrument has the function of self-check and fault alarm.

10. The instrument has automatic ignition and hydrogen leakage protection functions.

11. Imported stainless steel joints and pipelines are used to avoid sample adsorption and corrosion.

12. The instrument chassis is waterproof, dustproof and shockproof.

4. Technical parameters

Detection range Methane, non-methane total hydrocarbons and total hydrocarbons

Range Methane (0.1ppm ~ 100 %); non-methane total hydrocarbons (0.05ppm ~ 100%)

Detector Hydrogen flame ionization detector (FID)
detection limit ≤ 0.1ppm (methane) 0.05ppm (non-methane total hydrocarbons)

Repeatability RSD≤3% (total hydrocarbons)
analysis cycle non-methane total hydrocarbons <60s

Power supply <500W, 24V DC
Working environment Temperature: (0～50)℃, Humidity : (10%～90%) RH
communication RS232/RS485, Ethernet
weight 11kg
