1. Product introduction

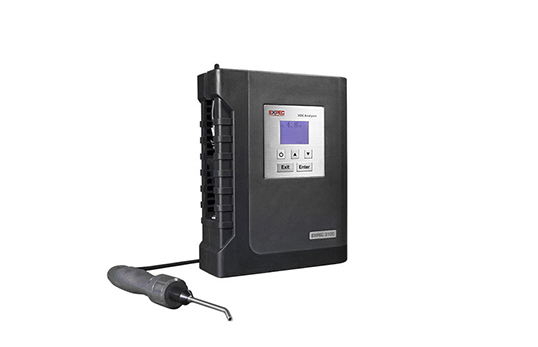

EXPEC 3100 portable volatile organic gas analyzer is equipped with FID (hydrogen flame ionization detector) and PID (photo ionization detector), which can detect most toxic and harmful gases (including volatile organic gases and some common inorganic substances that cause odor and odor). gas) responds. The whole instrument is small in size, light in weight, good in detection performance and simple in operation, which meets the requirements of customers for fast and accurate analysis on the detection site, and meets the "Volatile Organic Compound Emission Control Standard" (GB37822-2019) for daily rapid detection of fugitive emissions. Application Requirements for Total Hydrocarbons.

Applications

Unorganized on-site emergency detection

Rapid Detection of Stationary Pollution Source Emissions

Efficiency evaluation of VOCs treatment facilities

VOCs traceability investigation

Chemical Enterprise Pipeline Emission Leak Detection

On-site inspection of oil and gas recovery at gas stations and oil depots

2. Product Features

Explosion-proof design of the whole machine

The analyzer circuit adopts intrinsically safe explosion-proof design, the core FID detector module adopts explosion-proof design, and the hand-held communicator adopts intrinsically safe explosion-proof design to meet the use requirements of explosive and dangerous gas places.

Strong on-site detection capability

Optional FID and PID dual detectors, responding to most organic gases and some inorganic gases, with a response time of less than 3.5 seconds, suitable for on-site volatile organic gas leak screening and inorganic odor gas traceability investigation;

The compact structure design, carefully selected lightweight components and composite materials, make the host weigh only 3.7kg, which is easy to carry on the industrial site.

Next Generation Portable Field Solutions

Suitable for network applications, one-click upload to cloud platform, more convenient operation;

The handheld operator scans the code to identify and call the picture-type point information, which is more efficient;

The Communicator and Analyzer use a wireless connection for more flexibility than traditional instrument interfaces.

Humanized accessory design

Safe and fast hydrogen charging and discharging module, the hydrogen charging is completed within 10s, and the hydrogen discharging operation is completed within 1min;

Wireless transmission: High-reliability industrial wifi module is used to achieve stable and fast data transmission between the handheld terminal and the analyzer;

Optional hydrogen storage alloy gas cylinders are available to meet application requirements under different working conditions.
