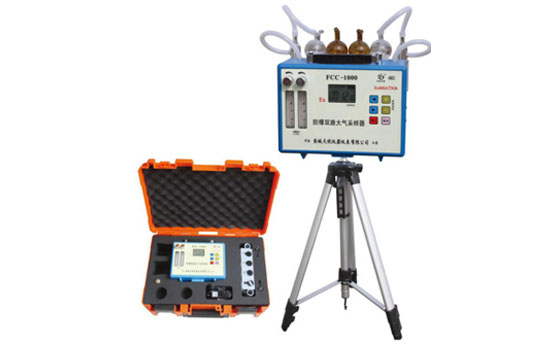

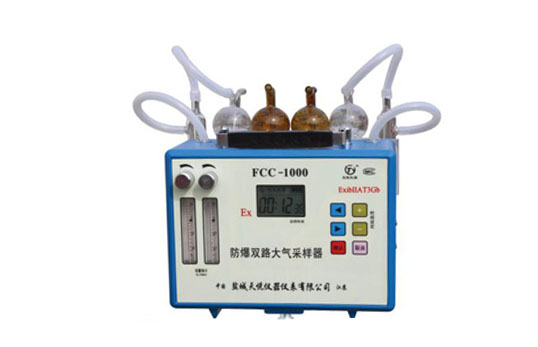

FCC-1000 Dual Explosion-proof Atmospheric Sampler
-
Product name：FCC-1000 Dual Explosion-proof Atmospheric Sampler -
Order number： -
Model： -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction:
The sampler is an explosion-proof dual gas path atmospheric sampler introduced by our company. The instrument is controlled by microcomputer constant current system, LCD digital display system, menu setting, and both AC and DC. The single-chip microcomputer is used as the intelligent control central processing unit, which makes the instrument more applicable. Standard 4400mA lithium battery to meet long-term sampling requirements. It is a practical two-way explosion-proof atmospheric sampling instrument suitable for occupational health, environmental protection, factories and mines, colleges and universities to detect the atmosphere.
The sampler is designed in accordance with MT162-95 "General Technical Conditions for Dust Samplers in Workplaces", Q/YCTY02-2008 Enterprise Standard for Atmospheric Samplers and ExibⅡAT3GB Grade (Intrinsically Safe) in GB3836.4-2010 Standard. It is suitable for factories and mines and Other workplaces containing explosive dangerous gas. It has the characteristics of small sampling gas pulsation, large load capacity, stable flow, simple operation, safety and reliability, and easy portability.
2. Product parameters:
1. Flow range: 0.1~1L/min, 0.1~1.5L/min, 0.1-3L/min, 1-5L/min, 20-500ml/min (optional)
2. Flow error: ≤±5%
3. Timing error: ≤±1%o
4. Large negative pressure: ≥35000Pa
5. Charging current: 1000mA (standard type)
6. Sampling time: ≥240min
7. Working temperature: -10-40℃
8. Noise: ≤60dB
9. Relative humidity: ≤85%
10. Weight: 1.6KG
11. Volume: 210*150*90mm
3. Product Features:
1. The sampling time can be set arbitrarily within 1min～99h59min
2. It adopts large LCD screen display, intelligent management system, menu setting, can record the last sampling time, continuous sampling, intermittent sampling, intelligent power management, timely display of power, charging indication
3. Using high-performance lithium battery without memory, no need to discharge before charging
4. In the lithium battery pack of the sampler, a short-circuit current limiting protection device is specially designed to ensure that the sampler works in a safe current range, thereby improving the safety performance of the sampler.
5. When the battery voltage is lower than 6V, (please charge in time) the sampler automatically starts self-protection to avoid affecting the service life of the battery due to over-discharge of the battery.
