Expl.pro.dust sampler

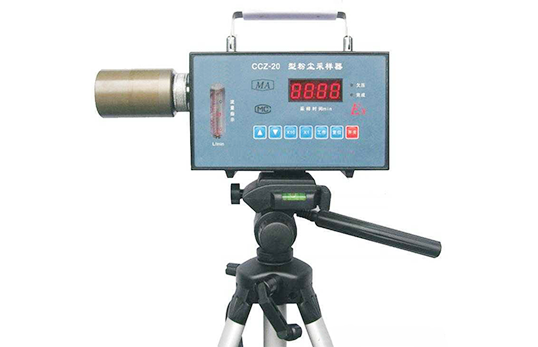

CCZ20 Mine Dust Sampler
-
Product name：CCZ20 Mine Dust Sampler -
Order number： -
Model： -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
The sampler is equipped with two types of dust pre-trap, one is a total dust pre-trap for measuring the total dust concentration; the other is a pre-trap for measuring the concentration of respirable dust; The respiratory dust and non-respirable dust that are harmful to the human body are separated, and both respiratory and non-respirable dust samples can be collected at one time. The separation efficiency reaches the internationally recognized "BMRC" curve standard, which is a relatively reliable dust. separation device.
It is suitable for underground coal mines and other workplaces containing explosive dangerous gases.
2. Product parameters
1. Sampling flow: 10～25L/min (adjustable)
2. Sampling flow error: ≤5%FS
3. Sampling flow stability: sampling flow stability within 30min of the sampler is less than or equal to 3.0%FS
4. Load capacity: ≥200Pa
5. Negative suction pressure: ≥3000Pa
6. Continuous working time: ≥100min
7. Working noise: ≤75dB (A)
8. Flow meter accuracy: not less than 2.5.
9. Sampling time error: ≤0.1%
10. Average velocity of sampling port: 0.5～4.0m/s
11. Sampling accuracy: ≤10%
12. Intrinsically safe battery pack: Ni-H Ni-MH battery 2.3A/h, 6 cells, connected in series with 4 current limiting resistors of 0.51Ω/10W,
After potting with epoxy resin and placing it in the battery box, the rated voltage Ue: 7.2V; its maximum output voltage U0: 8.4V; the maximum
Output current I0: 3.0A.
13. Dimensions: 149*202*80 (mm)
14. Weight≤1.75Kg
15. Ambient temperature: 0～40℃; Relative humidity: ≤95%
16. Ambient atmospheric pressure: 80KPa ~ 110KPa underground coal mines containing gas or coal dust explosion hazards
3. Product Features
The instrument is equipped with a high-performance suction pump, which has the characteristics of non-pulsating airflow, large load and negative pressure capacity, automatic timing sampling, stable flow, simple operation, and easy portability.
