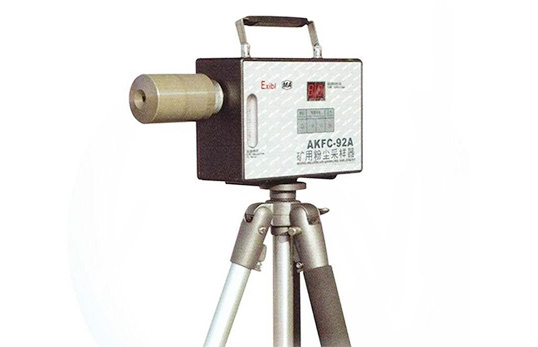

AKFC-92A explosion-proof dust sampler
-
Product name：AKFC-92A explosion-proof dust sampler -
Order number： -
Model： -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
AKFC-92A mine dust sampler is a conventional instrument for measuring the concentration of floating dust in ambient air. It is composed of alarm circuit, safety power supply, etc. It is also equipped with a variety of dust pre-catchers. Among them, the whole dust pre-collector is used to measure the total dust concentration; the other is the impact pre-collector used to measure the concentration of respirable dust. It can collect both respirable and non-respirable dust samples at one time, and its separation efficiency reaches the internationally recognized "BMRC" curve standard. It is a relatively reliable and practical dust pre-separation device.
It is suitable for dust monitoring in industrial and mining enterprises, labor safety, labor hygiene and environmental protection departments.
2. Product parameters
1. Sampling flow: 20L/min
2. Sampling flow error: ±3.0%.
3. Sampling flow stability: ±3.0%
4. Load capacity: ≥200 Pa
5. Air tightness of the sampling head: under the pressure of 1000Pa, the pressure change value within 1min shall not exceed 100Pa.
6. Flow meter accuracy: not less than 2.5.
7. Sampling time error: The sampling time error should not be greater than 0.1%.
8. Dust collection range: all dust, respirable dust
9. Sampling accuracy: 10%
10. Timing range: any setting within 0 to 99 minutes
11. Continuous working time: ≥100min
12. Working noise: ≤75dB (A)
13. Explosion-proof type: mine intrinsically safe type, explosion-proof mark: ExibIMb
14. Applicable environment: underground temperature: 0℃～40℃; ground: -10℃～+40℃
Relative humidity: ≤95%, explosive gas environment containing coal dust and gas.
15. Dimensions: 200 mm * 140 mm * 80 mm
16. Instrument weight: 1.8kg
17. Use a nickel-cadmium battery pack, the model is GNY1.2V/2.5Ah×6 connected in series, the battery pack is connected in series with the battery overcurrent protection board (<=2A), after welding, put it into the battery box together, and use 704 silica gel with the battery Potting constitutes an intrinsically safe battery pack.
3. Product Features
The casing of this machine is made of high-strength ABS engineering plastic, and has been specially treated for moisture-proof, dust-proof, and anti-static. The instrument has the advantages of non-pulsating airflow, negative pressure, large load capacity, automatic timing sampling, safe and reliable, durable, easy to carry and use on site, and its main technical indicators have reached or approached the international advanced level.
