Expl.pro.dust sampler

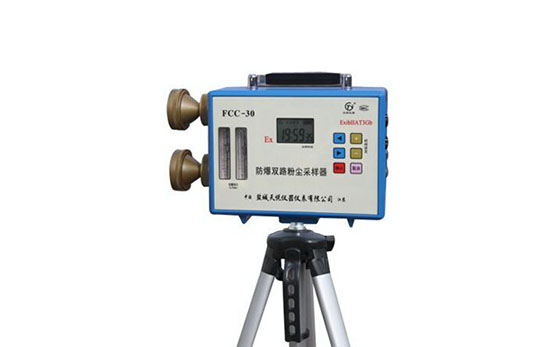

FCC-30 Dual-channel explosion-proof dust sampler
-
Product name：FCC-30 Dual-channel explosion-proof dust sampler -
Order number： -
Model： -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction:
FCC-30 explosion-proof dual-channel dust sampler is a dust sampler introduced by our company. The instrument is controlled by microcomputer constant current system, LCD digital display system, menu setting, and both AC and DC. The American single-chip microcomputer is used as the intelligent control central processing unit, which makes the instrument more applicable. The standard 6600Ah lithium battery meets the long-term sampling requirements. It is a more practical dual-channel explosion-proof dust sampling instrument suitable for occupational health, environmental protection, factories and mines, colleges and universities to detect respiratory dust and total dust.
The sampler is designed in accordance with MT162-95 "General Technical Conditions for Dust Samplers in Workplaces", Q/YCTY01-2008 Enterprise Standard for Dust Samplers and Exib (intrinsically safe) explosion-proof design in GB3836.4-2010 standard. The instrument is equipped with a set of The micro dust pre-collector can separate the respiratory dust and coarse powder dust that are harmful to the human body, and its separation efficiency conforms to the "BMRC" curve standard.
The instrument adopts advanced mold forming technology, selects high-strength ABS engineering materials, and has made special treatments such as moisture-proof, dust-proof and anti-static. Small size and light weight greatly reduce the labor intensity of on-site inspection personnel.
2. Product parameters:
1. Flow range: 5-30L/min, 5-25L/min (optional)
2. Negative suction pressure: >3000Pa
3. Sampling range: all dust and dust
4. Timing range: 99 hours and 59 minutes
5. Working time: ≤240min
6. Noise: ≤70dB
7. Working temperature: -20℃～40℃
8. Relative humidity: ≤85%
9. Volume: 210x150x90(mm)
10. Weight: about 1.8kg
3. Product Features:
1. The sampling time can be set arbitrarily within 1min～99h59min
2. It adopts large LCD screen display, intelligent management system, menu setting, can record the last sampling time, continuous sampling, intermittent sampling, intelligent power management, timely display of power, charging indication
3. Using high-performance lithium battery without memory, no need to discharge before charging
4. In the lithium battery pack of the sampler, a short-circuit current limiting protection device is specially designed to ensure that the sampler works in a safe current range, thereby improving the safety performance of the sampler.
5. Double-channel volumetric rotary vane pump is used for sampling, thus ensuring the sampling time and sampling accuracy
6. When the battery voltage is lower than 6V, (please charge in time) the sampler automatically starts self-protection to avoid affecting the service life of the battery due to over-discharge of the battery
